W530 Replacement Blades

New W530 Composite Blades

W530_01The new WhirlWind W530 all-composite blades are designed to fit the existing V530 propeller hub on M-14P engine powered aircraft. The W530 blades have an updated blade twist distribution, new airfoils and a unique profile to give improved take-off, climb, and cruise performance with smooth quiet operation. The unique Whisper Tip™ scimitar blade planform reduces aerodynamic transonic drag, increases efficiency and reduces prop noise. This means more performance for your airplane, and less noise from the propeller.

The W530 has an increased diameter of 98.5” (250cm) which translates to better climb performance.

W530_21_cropped

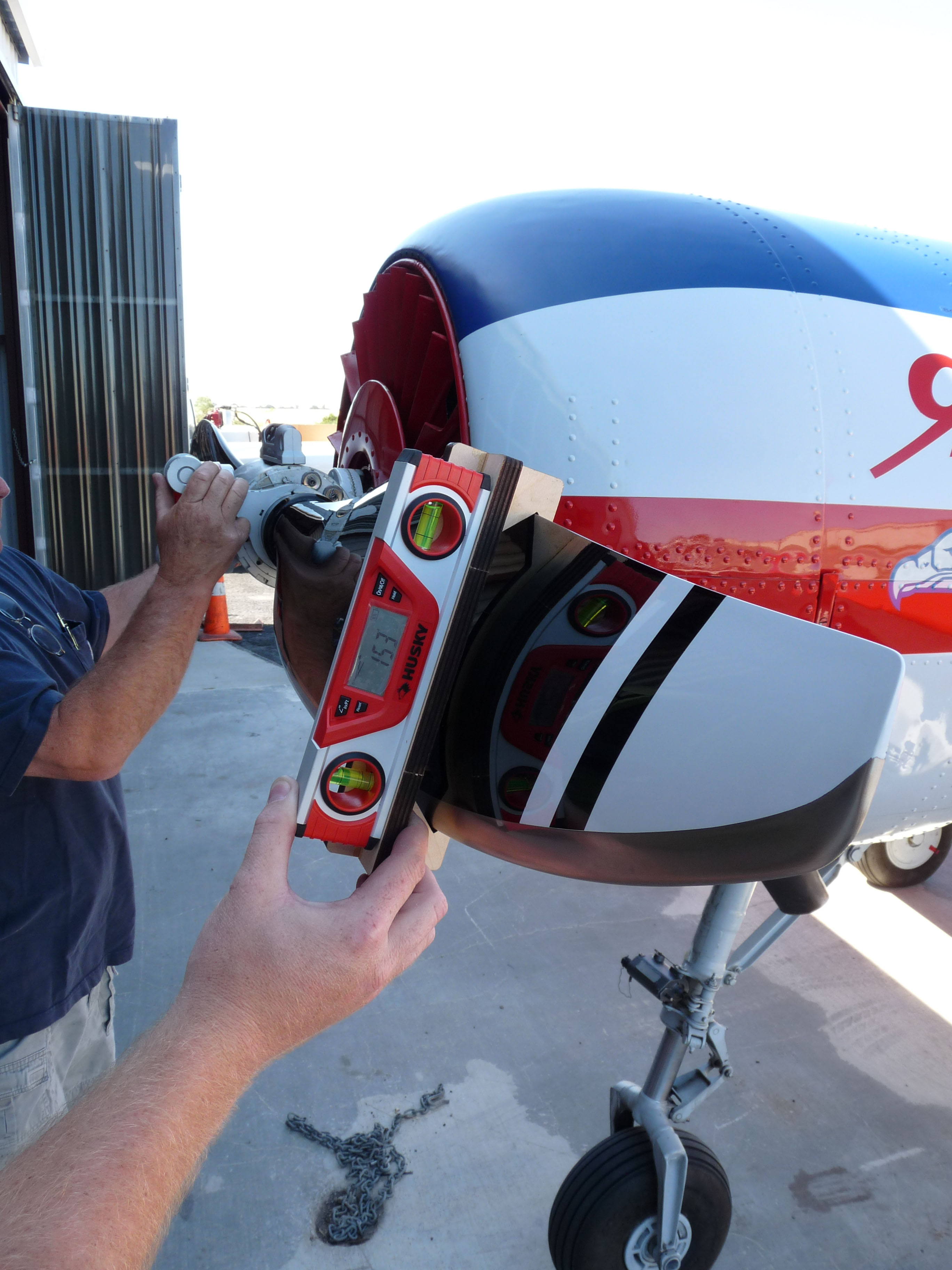

** The included laser cut pitch tool makes blade alignment a snap (protractor not included). * Blade standard paint finish is Class A urethane black finish w/ polished nickel leading edge.
** The included laser cut pitch tool makes blade alignment a snap (protractor not included).
* Blade standard paint finish is Class A urethane black finish w/ polished nickel leading edge.

Smooth & Powerful Operation

The first characteristic the pilot will notice is how much more smooth the propeller operation is compared to the old wood V530 blades. This is possible because the composite blades are manufactured from WhirlWind’s patented design & manufacturing process using advanced aerospace thermo-set composites. Every W530 blade is exactly the same in dimension, twist and contour. Thermo-set composite graphite material will ensure the blades are structauly and dimensionally stable for life regardless of environmental conditions.

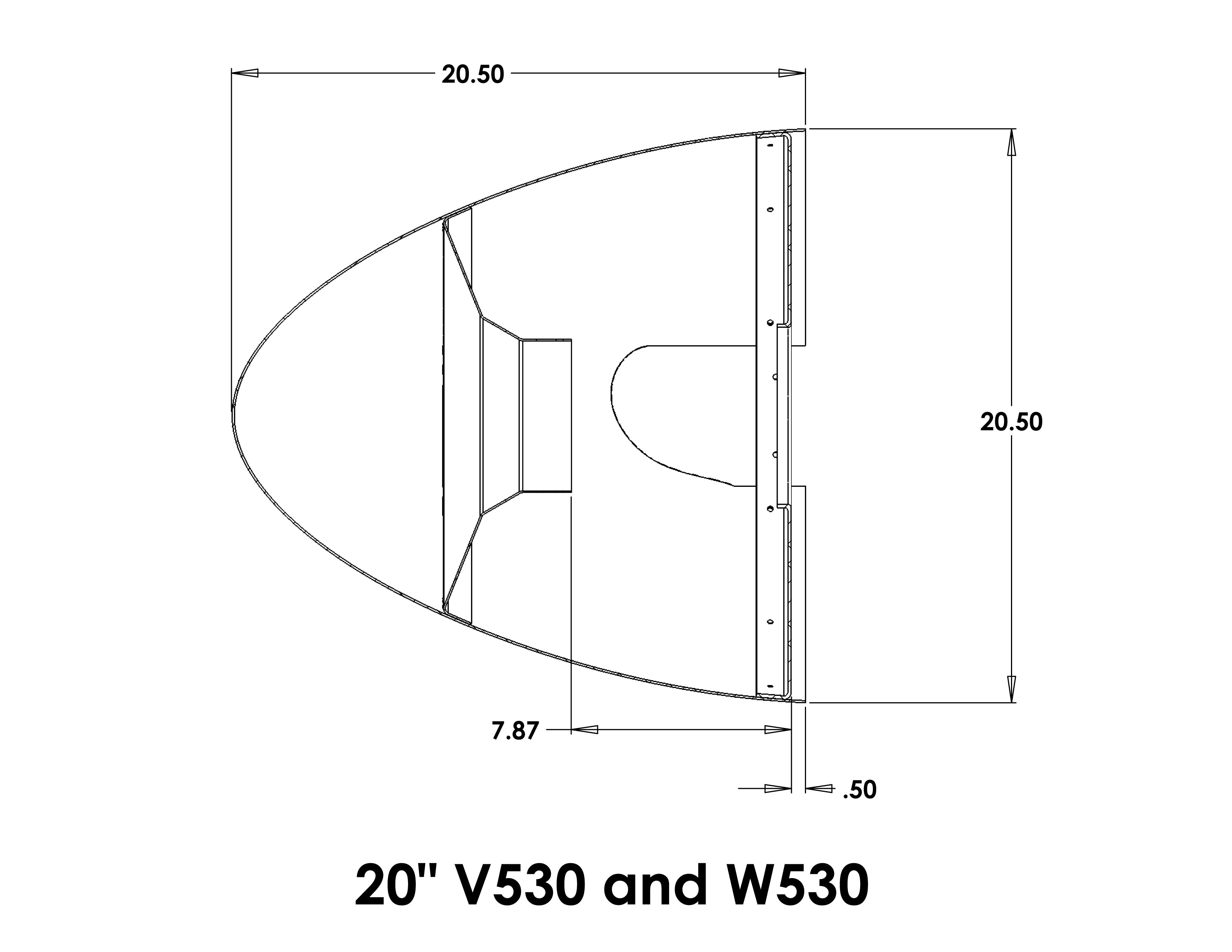

20″ Spinner Drawing

Spinner Assy_20 inch V530 - W530




Additional Features

Through intelligent engineering and the use of high-tech composite materials, the WhirlWind W530 blades are 6 lbs lighter than the original wood blades. The W530 blade has a flush bonded electroformed nickel leading edge that provides superior fit and durability unmatched by any other leading edge method. The nickel leading edge shield wraps around the tip providing maximum abrasion protection as well as for a low drag tip design.

New W530 Original Wood V530
Diameter: 250 cm (98.5 inches) 240 cm (94.5 inches)
Construction: Thermo-set Aerospace Graphite composite Wood
Leading Edge: Flush bond Nickel Riveted Multi-piece Stainless
Weight: 15.5 lbs (6 lbs savings per set) 18.5 lbs

Videos

Pricing

Available from:

M-14P Inc – (928) 681-4400

WhirlWind Propellers – (619) 562-3725

* Blade standard paint finish is Class A urethane black finish w/ polished nickel leading edge.

** The included laser cut pitch tool makes blade alignment a snap (protractor not included).

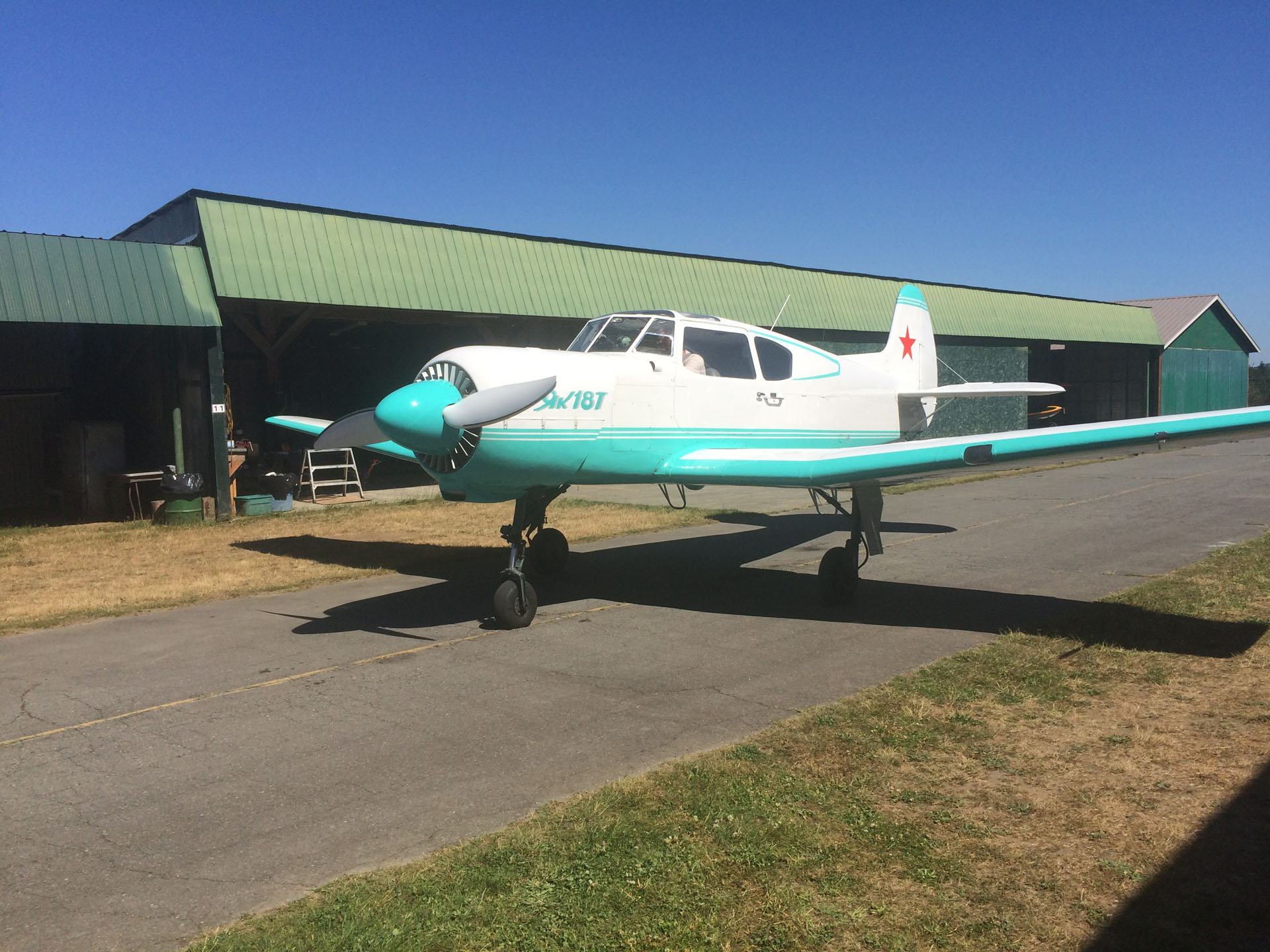

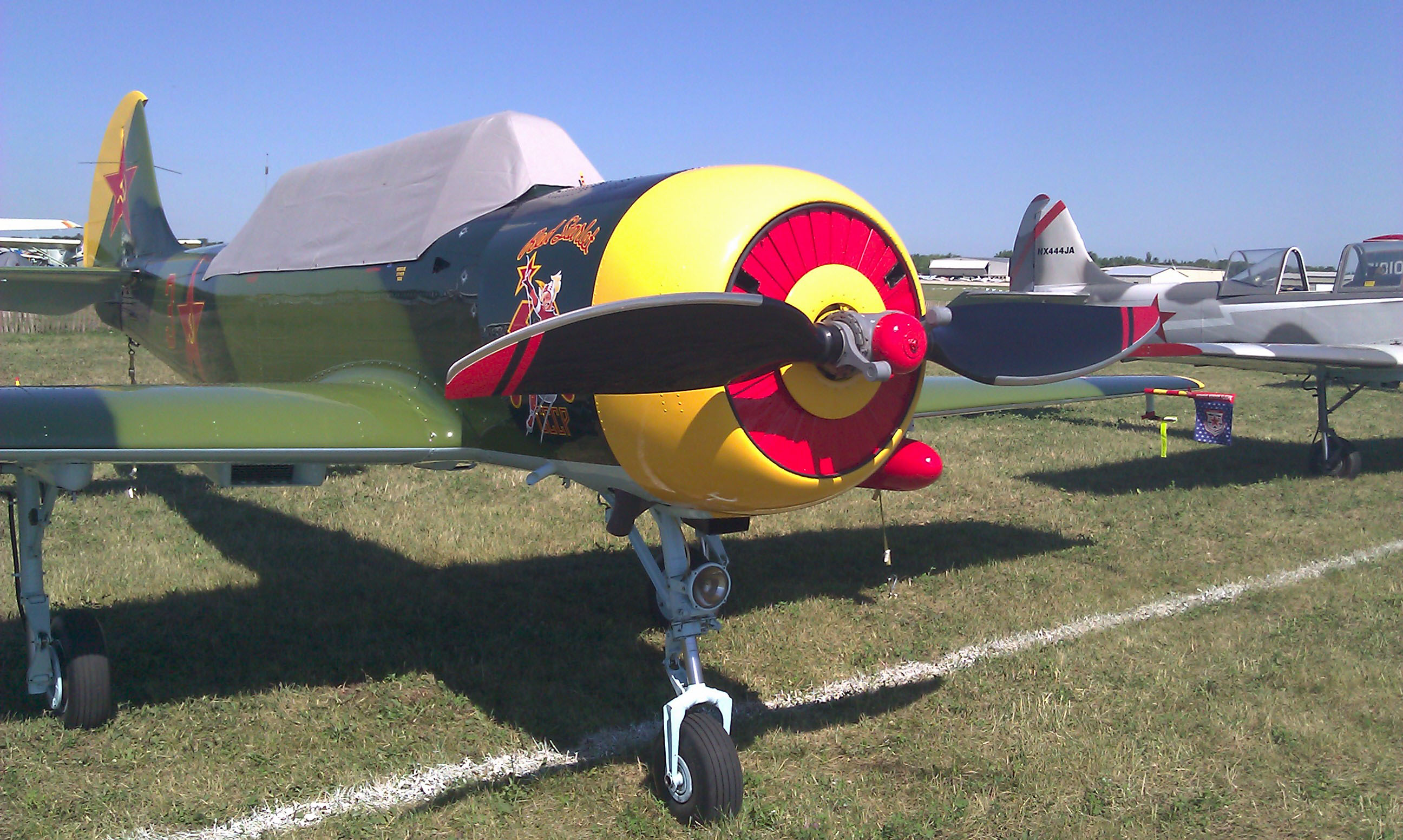

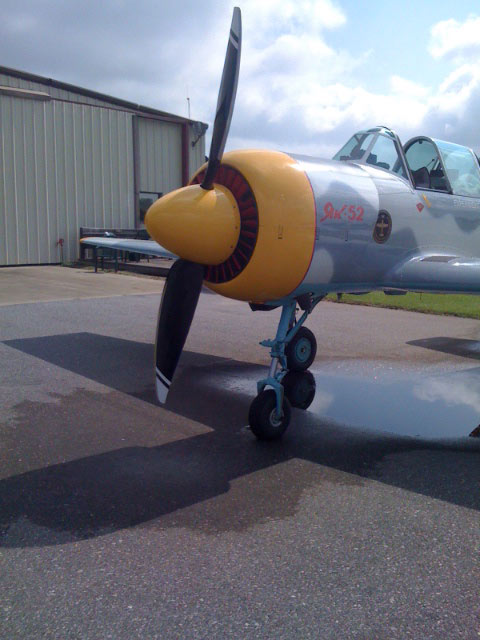

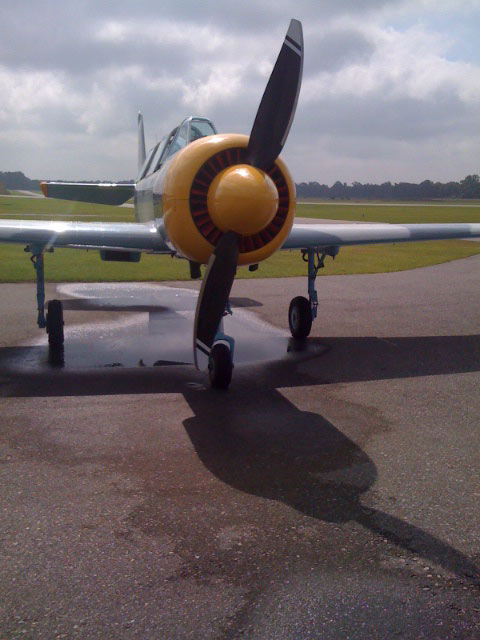

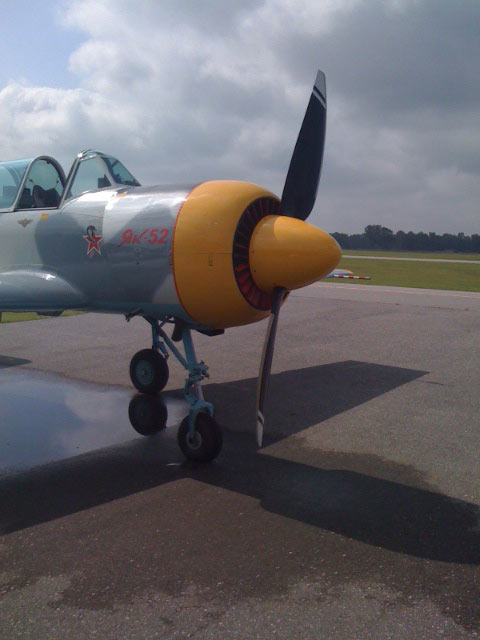

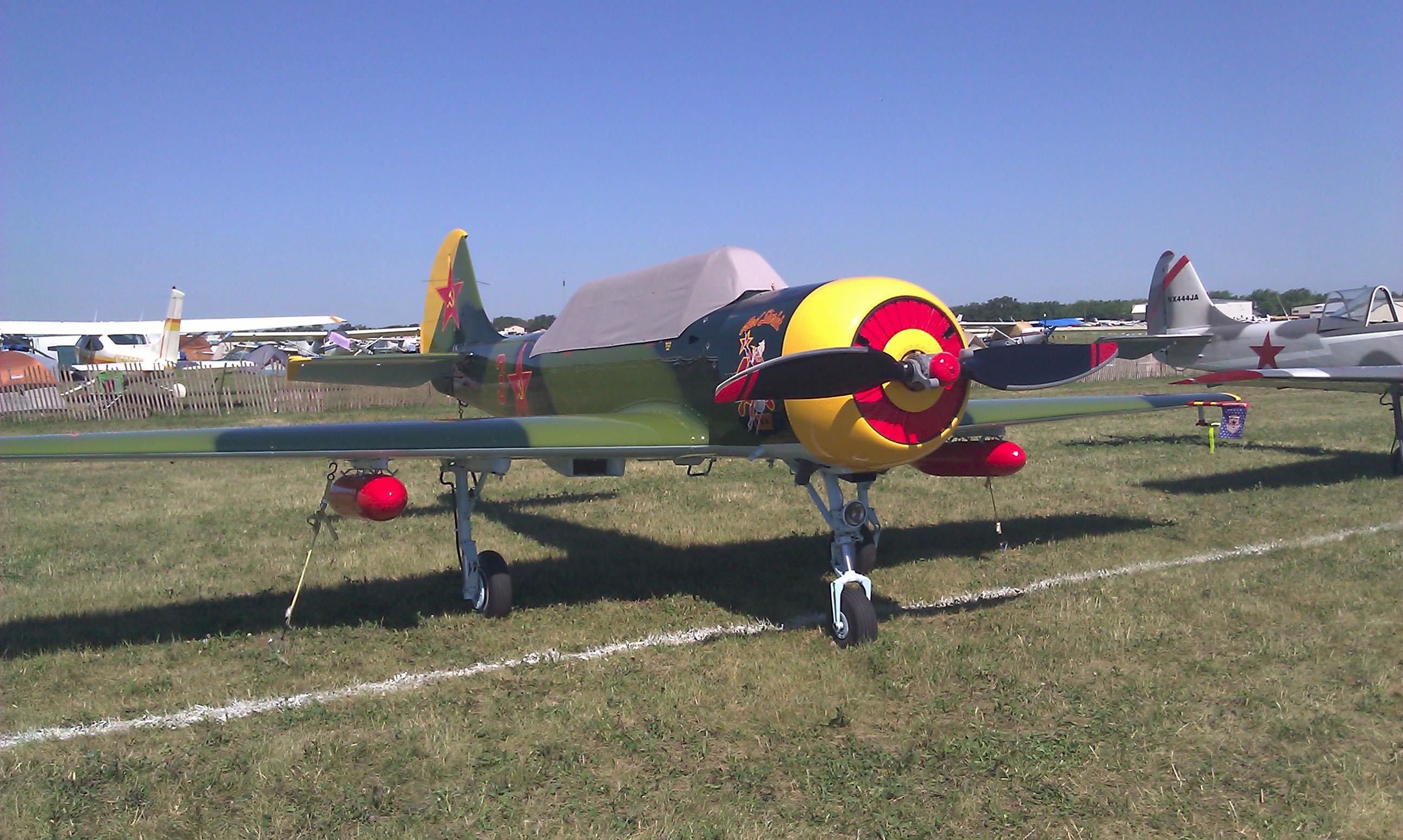

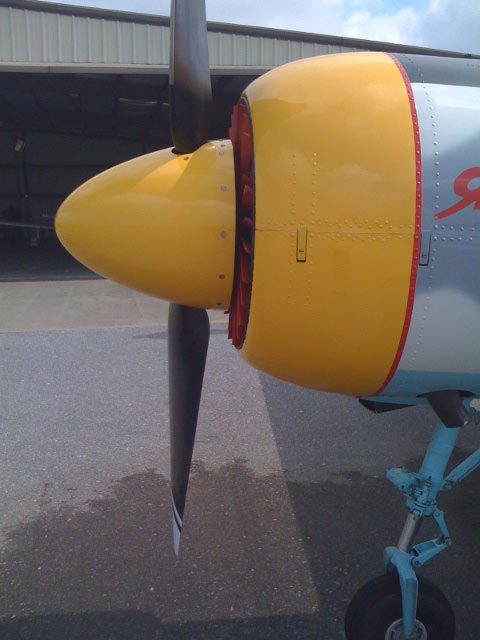

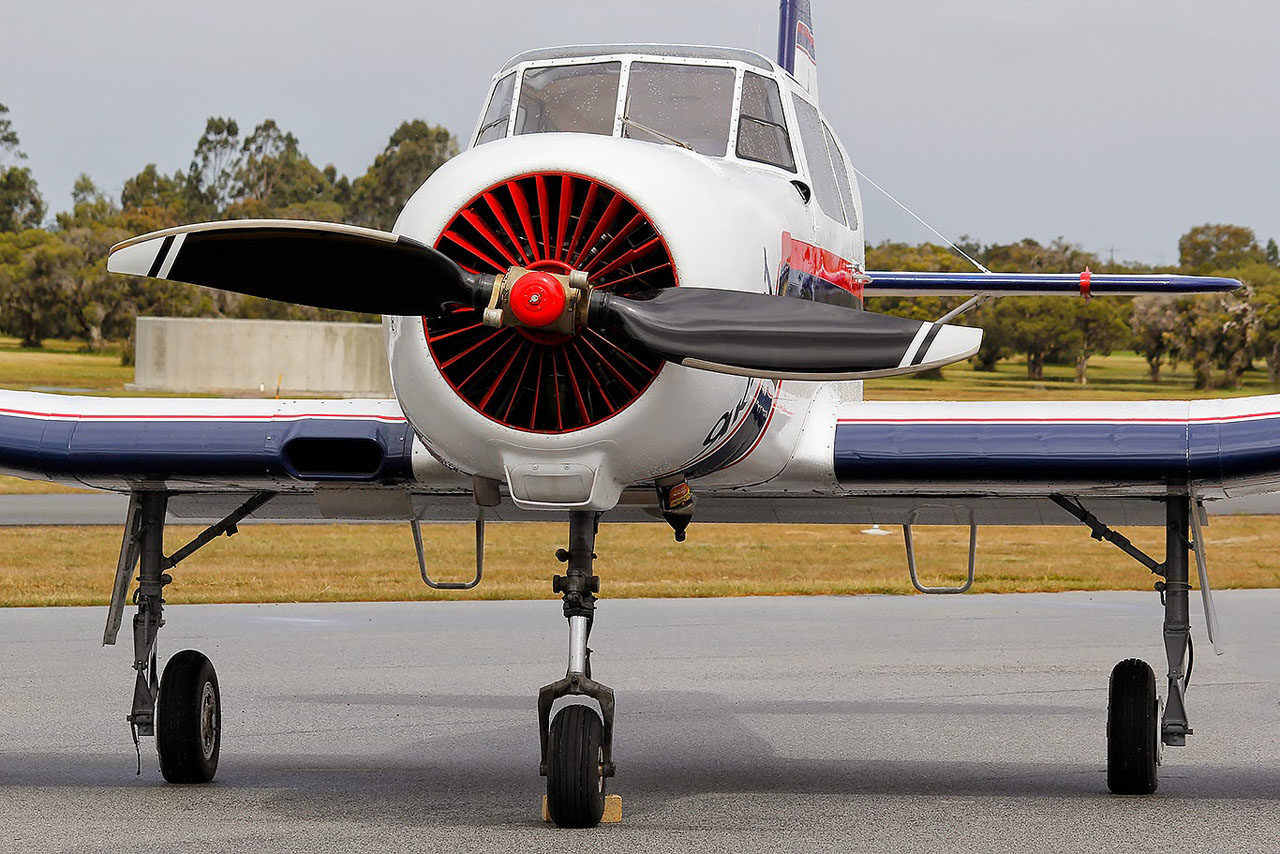

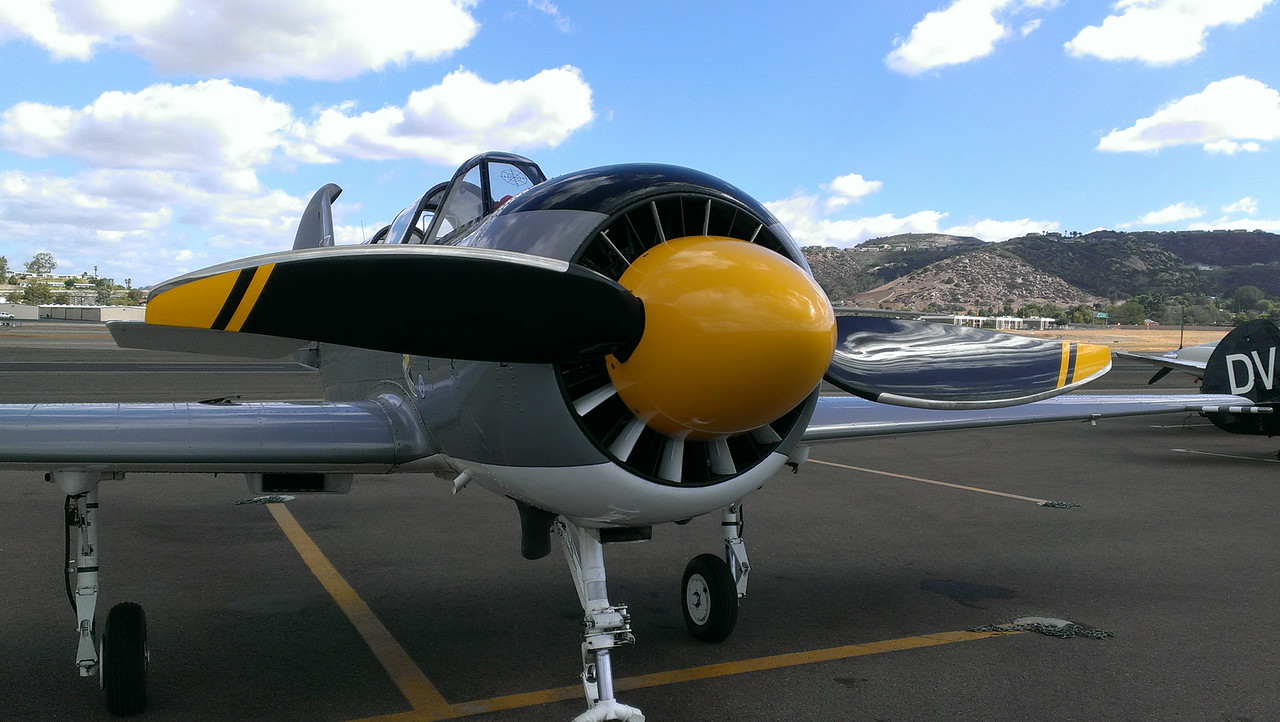

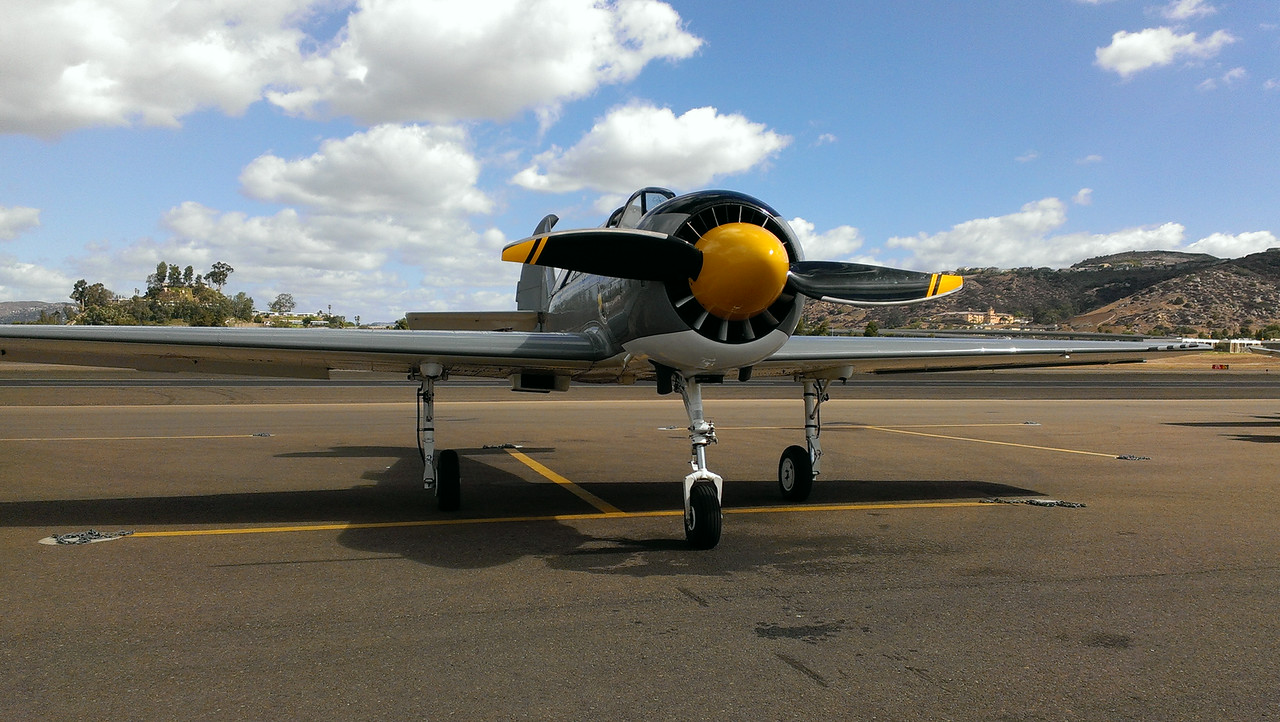

Typical applications

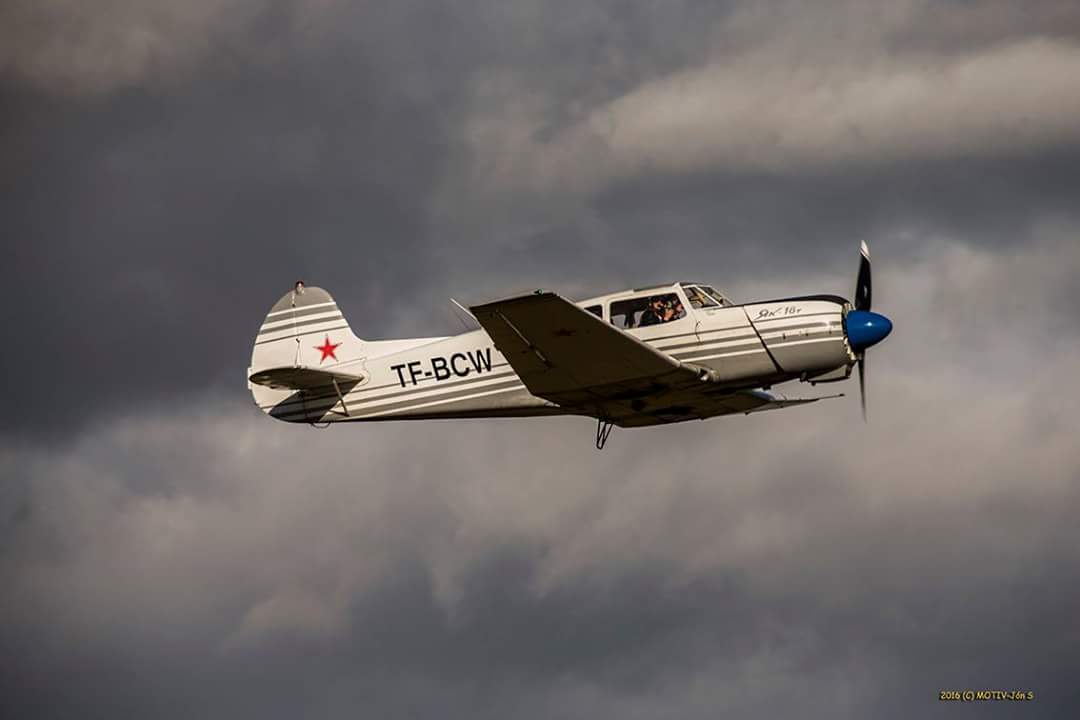

W530_23
MartinAndHarry
Spinner Assy_20 inch V530 - W530

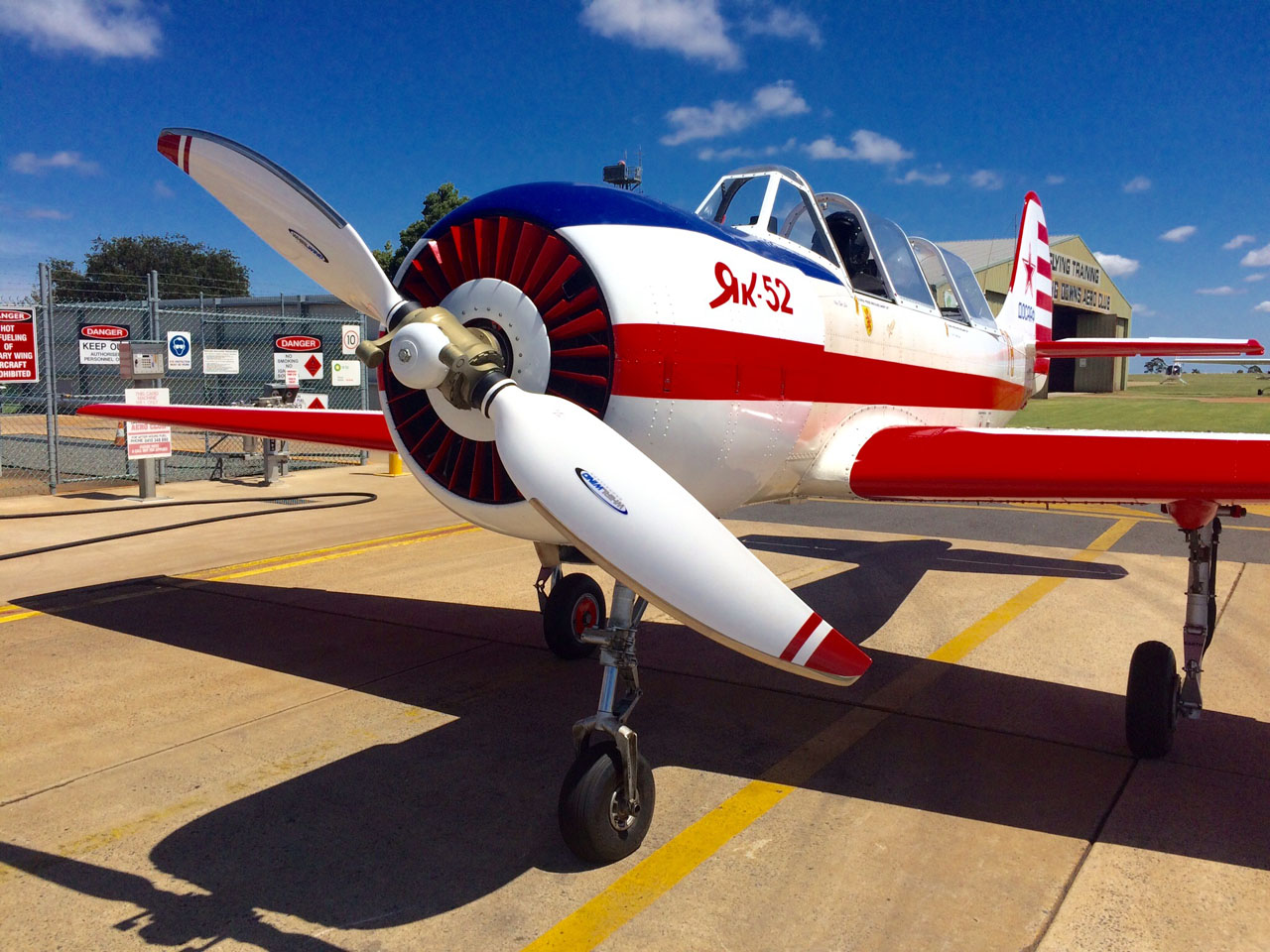

chrislee_01_lowres
anthonyhudacek_01_lowres

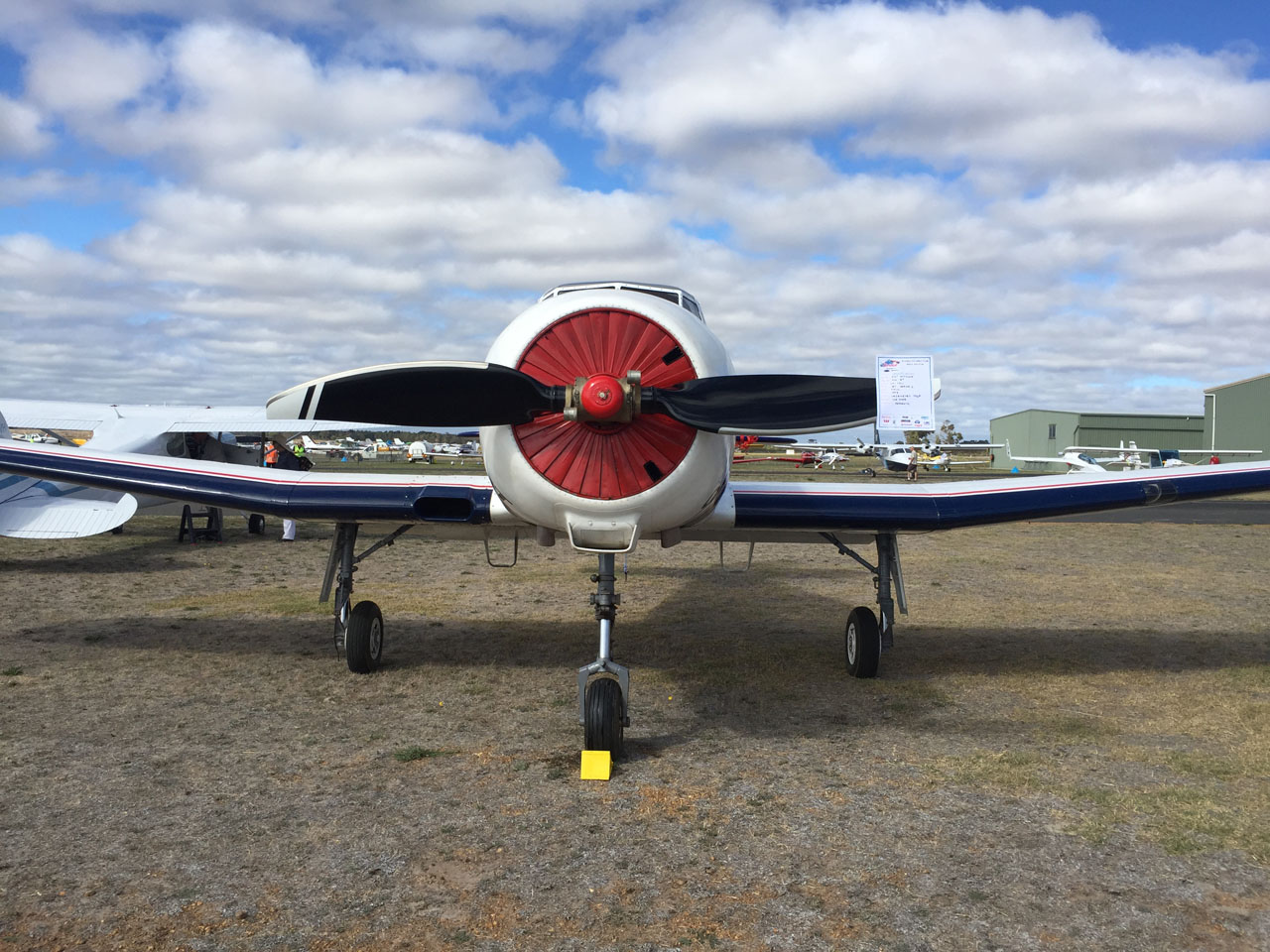

anthonyhudacek_02_lowres
w530_08
w530_09
w530_07
w530_05
w530_01

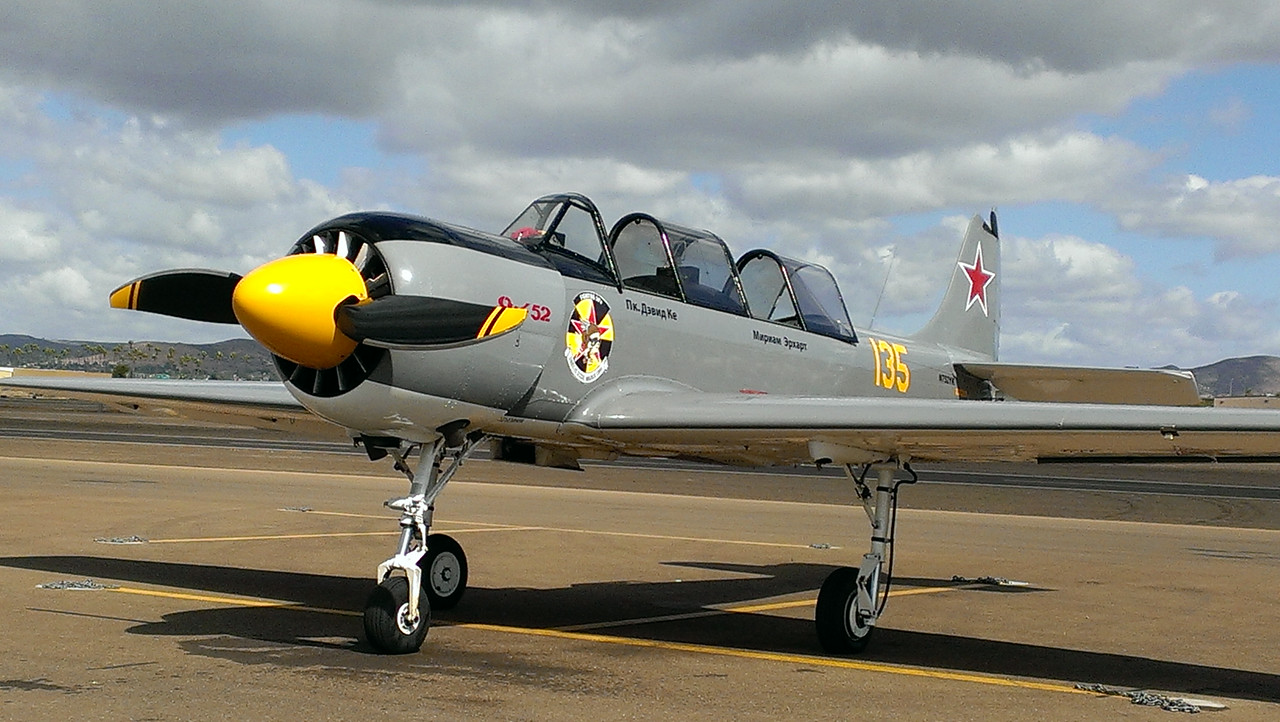

w530_02
w530_03

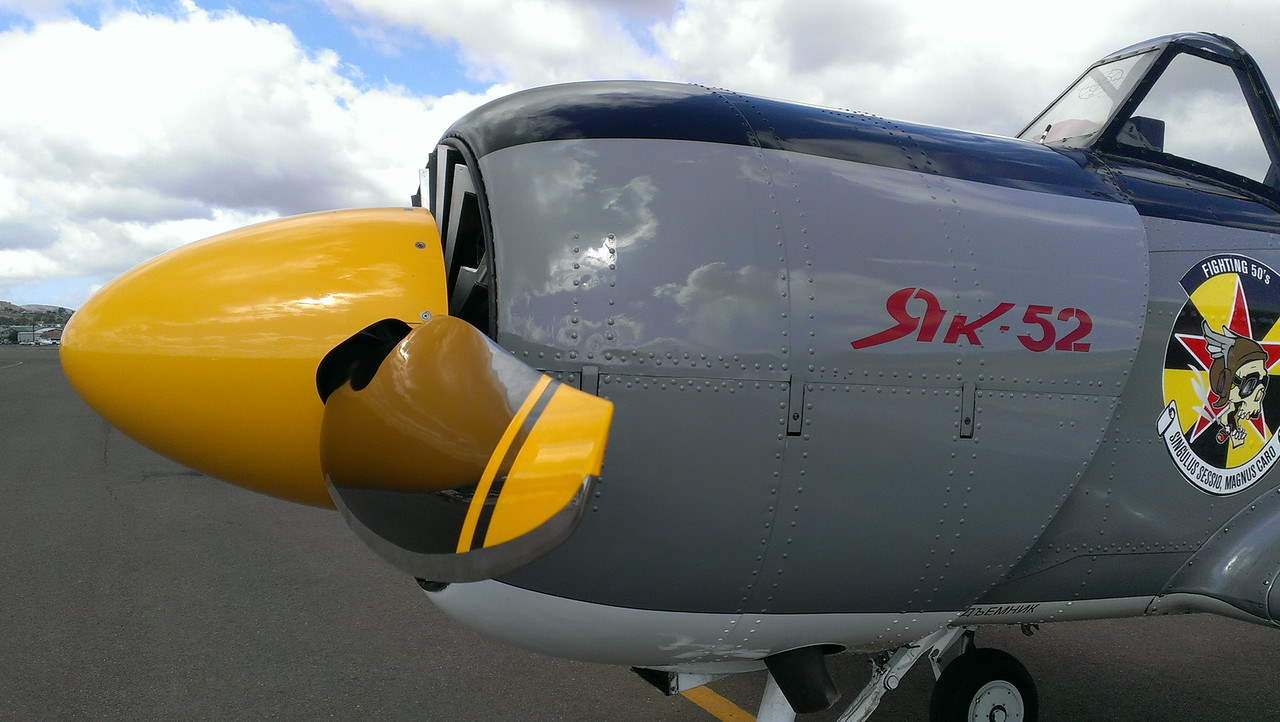

w530_04

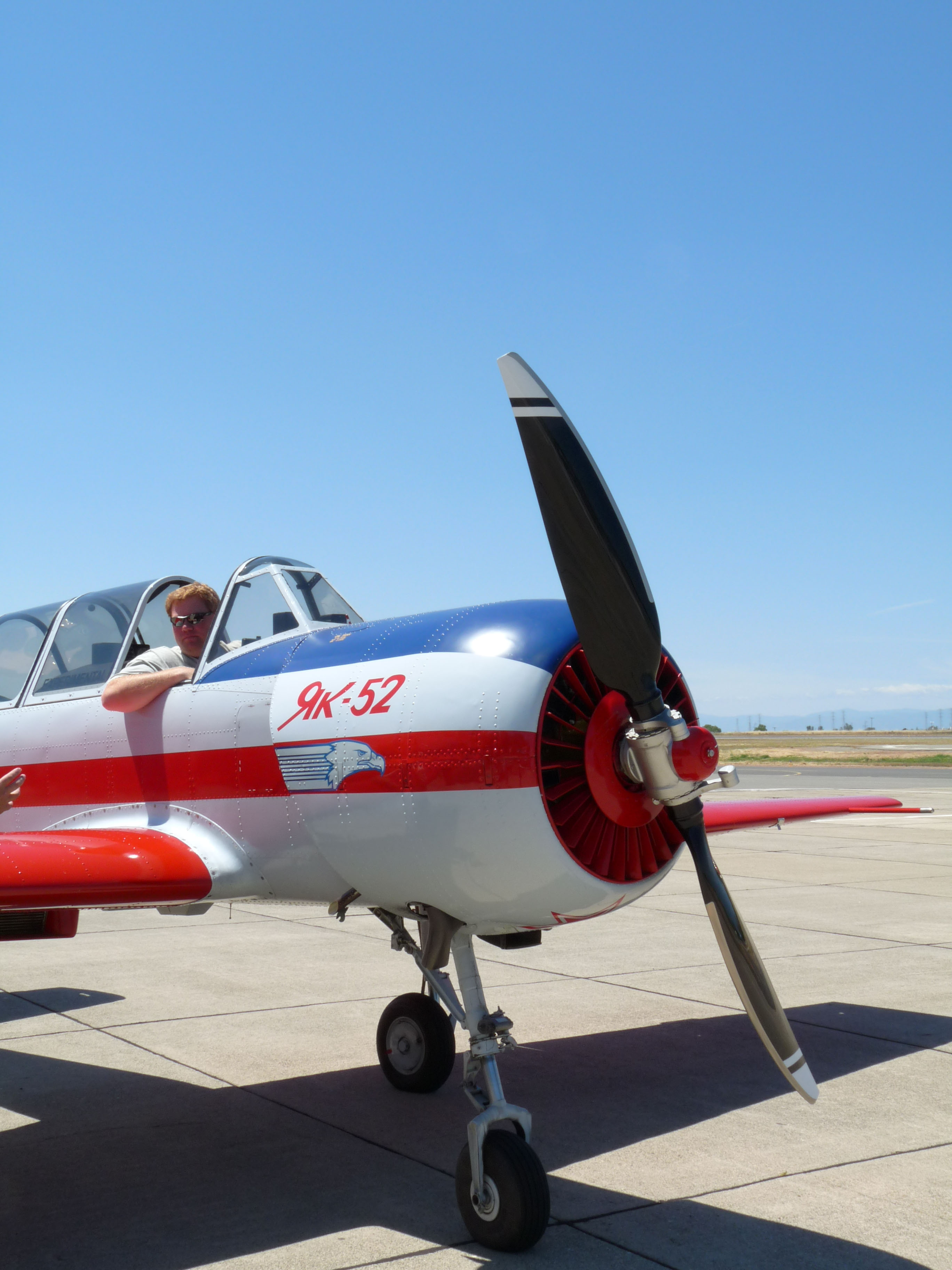

w530_10

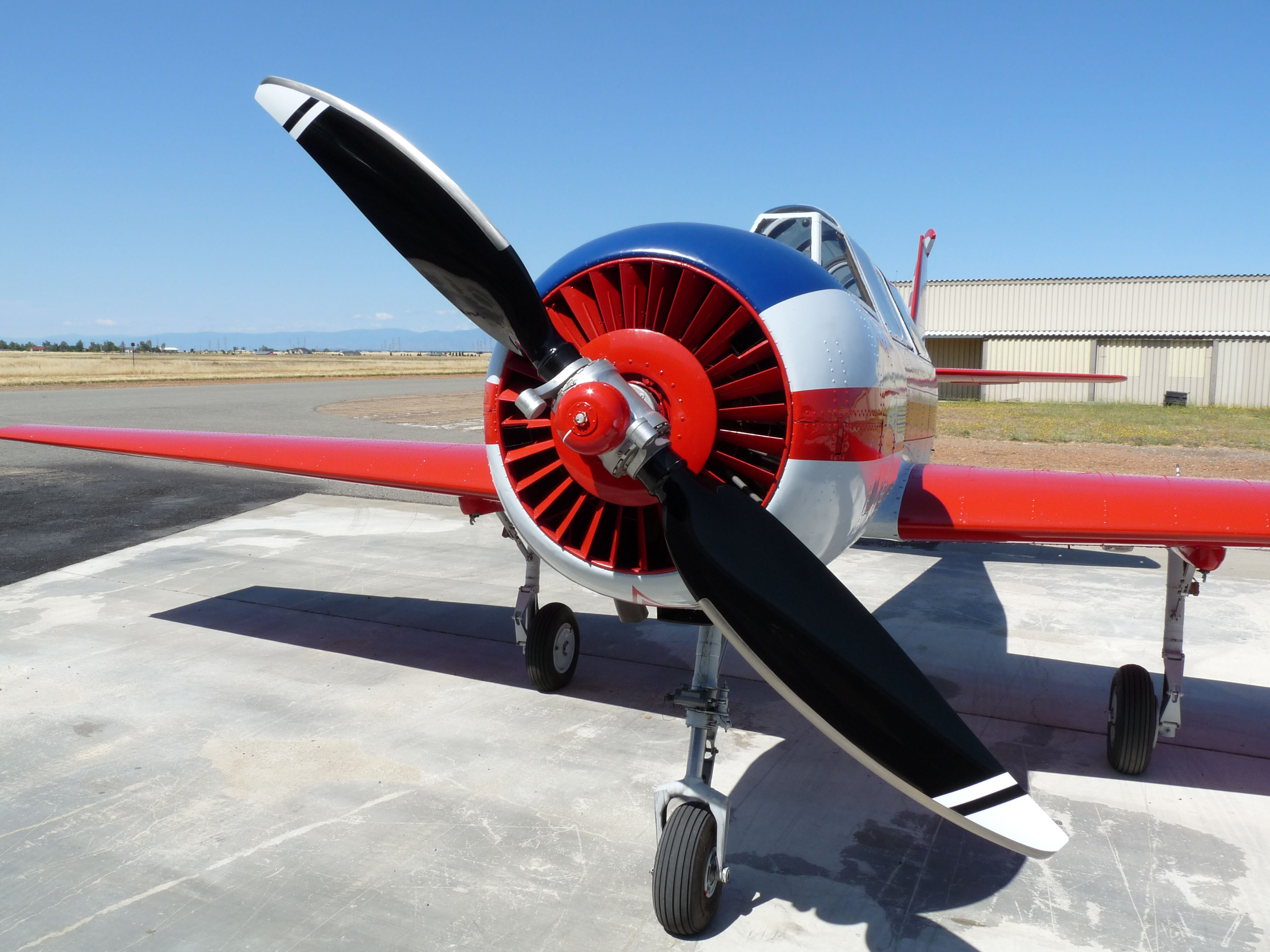

w530_11
w530_12

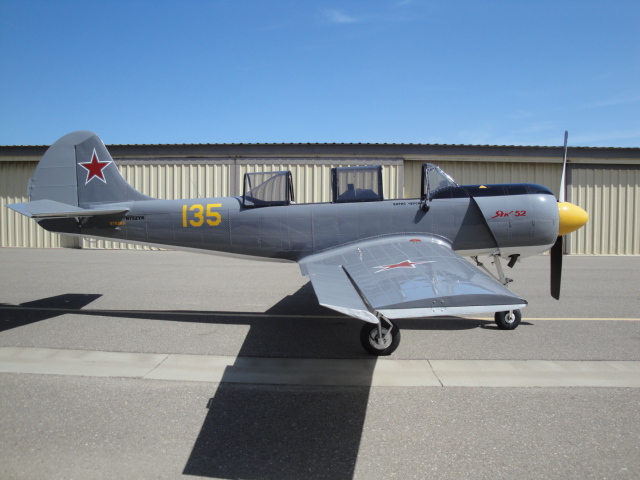

w530_13
w530_14
w530_15
