Propeller: AB300 72 Whisper Tip
Engine: Custom 750 hp all aluminum L92 Fuel Injected
Reduction: Century Belt Drive CH4 2.5
Airboat: Ground Rattler
Miscellaneous
Propeller Slider
Whirlwind Airboat Racing
Excalibur
Excalibur Propeller by WhirlWind – X-Core™ Composite Technology
For Direct Drive Applications
The Excalibur propeller features an all new high-performance blade design from Whirl Wind. The Excalibur Propeller design incorporates Whirl Wind’s exclusive structural X-Core™ Composite technology and the Whisper Tip™ blade style with its highly tapered profile and an aggressive swept-tip that offers superior performance.
The Excalibur blade is 5.5 wide, to bring the perfect performance that you are looking for. Now you don’t have to choose between Razor X’s unbeatable light-weight snap or the Whisper Tip’s renown low-end push. Now you can have it all without compromise with the Excalibur.
The Excalibur is available in 66” to 74” diameters, in 2, 3, 4 and 5 blade configurations. The Excalibur is an excellent upgrade for any Aircraft 4 Cyl or 6 Cyl powered airboat, as well as direct drive automotive powered airboats.
All WhirlWind blades are equipped with a long electroformed nickel leading edge that wraps around the tip end of the blade. Although nickel is much more expensive than other materials, WhirlWind uses Electro-formed Nickel because it is the toughest material available for leading edge protection. The blades are constructed with advanced thermo set aerospace graphite composite materials.
100% of WhirlWind airboat propellers are manufactured in-house. This ensures top quality parts, on-time delivery and quick product development.
Made in the USA.
Product details
Excalibur Propeller come in a standard length of 33″ and can be trimmed to 31.5″.
Specifications
Diameter Range | 66″ to 74″ |
Engine Application | 260-300 Hp – Lycoming O540 |
150-200 Hp – Lycoming O320-O360 – 3 Blade | |
Max RPM | 3000 |
Rotation | Right and Left Hand |
Available Configurations | 3 to 5 blade propeller configurations |
Blade Width: | 5.50″ |
Standard Features
- Electro-formed Nickel Leading Edge for Maximum Protection
- Carbon Composite Construction
- Light-Weight Skin Stressed Monocoque Blade
- X-CORE Technologies
Pricing
New Blades: | TBD |
Leading Edge Repair: | TBD |
Balance: | Free (Lifetime) |
Installation
[testimonial company=”” author=”Kerry” image=”https://whirlwindpropellers.com/airboats/wp-content/uploads/2012/09/silhouette-m-4988_57x57.png”]
Just installed my new Excalibur propeller on my Cadillac direct drive, Pitch is set it at 8 degrees and turns 3100. Pulled off the hill easier than the 2 blade I had before. Cruise rpm was 150 less with the Excalibur and very quit too. Plus to four blade is just bad ass looking too. I will be riding again Sunday and will try it at 2800 and maybe 3200. I will update you. Needless to say I like this prop. Thanks.
Engine: Direct Drive Cadillac
Propeller: Excalibur 72″ 4-blade
[/testimonial]
[testimonial company=”” author=”Eric J.” image=”https://whirlwindpropellers.com/airboats/wp-content/uploads/2012/09/silhouette-m-4988_57x57.png”]
I went for my first test ride today with the Excalibur, and I was very impressed. I bought the 66″ 3-blade for my 12×6’8 Thurman with an 0-320 and the verdict is, this is a great combo. Previously I ran a 66×34 woody and a 66″ 5-blade Warp Drive. I felt like the Excalibur improved the low-end-push and the mid-range, and the top speed between the Warp and Excalibur about the same (which is great!). The noise was much quieter with the Excalibur too.
The biggest gain I noticed was in the mid-range. With the Excalibur I was riding a ‘fast cruise’ at about 1,900-2,000 RPM, whereas the ‘fast cruise’ with my warp was around 2,100-2,200 RPM. Cruise RPM with my woody was even higher than the warp. As far as low-end-push goes, the Excalibur got me up on plane with just a quick stab of the throttle. It runs smooth and the snap is definitely there too. Overall I’m very happy with it. The Excalibur does everything very well. It’s the best prop I’ve ever put on my boat.
Engine: Lycoming O-320
Propeller: Excalibur 66″ 3-blade
[/testimonial]
Options
Blade Armor Coat
Armor Coat ™ is a high-gloss, very durable blade coating that will resist fading and protect your investment with stunning look only possible with WhirlWind Armor Coat.
Wind Tunnel Engineering
Thunder on the Loup 2012 – Drag Race
NARA Ground Rattler
Tall and stout!
Ground Rattler Unlimited Class Car Motor Race Boat Heading to the Starting Ramp
Travis Sherrer driving the unlimited class Ground Rattler boat, heading to the starting ramp. Always a crowd favorite.
Swamp Dragon 01
Mini-blade in action
Steppinupp 2
Steppinupp

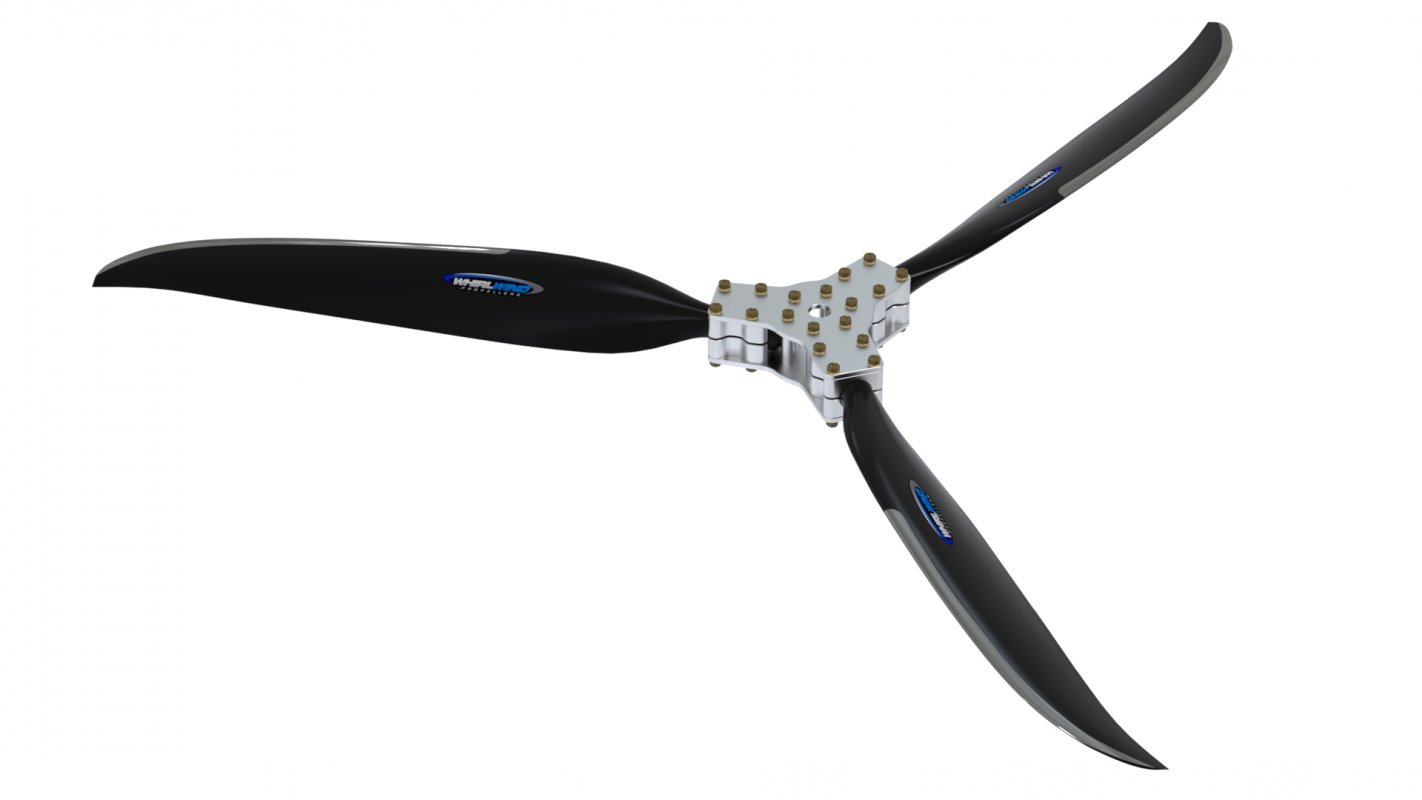

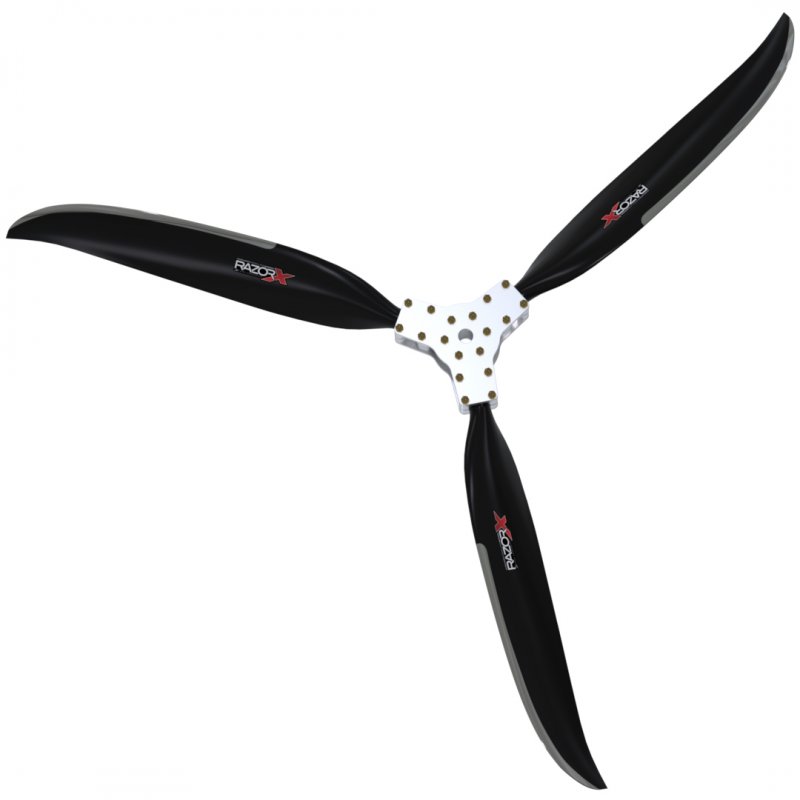

New ! Mini Airboat Propeller
:: Snappy Performance
:: Mini Composite Blade
:: Max RPM 2600
:: Unbeatable Performance
:: Light Weight
Whirl Wind developed the Mini Prop™ Series of airboat propellers for today’s fun and inexpensive mini-airboats. This is the first composite propeller designed specifically for mini airboats. The Mini Prop is ideal for 30 – 65 hp engines (Briggs, Kohler type engines) running a reduction drive unit. This is an ideal performance upgrade for your mini-airboat.
Specifications
The Mini Prop™ blades offer superior durability with the long electro-formed nickel leading edge and advanced aerospace carbon composite materials. This mini-propeller has been designed to operate up to a maximum of 2500 RPM, with horsepower ranging from 30 up to 65hp.
Bolt Pattern: Standard Rotax 75 mm Pattern using 8 mm bolts.
The Mini Airboat Propeller is available in 63” to 69” diameters for left-hand rotation, and 67” to 69” for right-hand rotation applications. The hub is designed for the smaller Rotax 75mm propeller flange bolt pattern.
Some examples of common engine /reduction Mini Airboat Propeller applications are listed below:
3-blade Mini example applications | 2-blade Mini example applications |
---|---|
(63” L) Generac 40 hp @ 3600, Reduction 1.69:1 | (63”L) Generac 40 hp @ 3600, Reduction 1.69:1 |
(65” L) Kohler 40HP, Century Belt Reduction 2:1 | (65” L) Subaru (28 HP), Circle S Reduction |
(65” L) Briggs 35 HP, Arrow Prop Reduction 2:1 | (67” L ) Cont. 4A-084 (40 to 45 HP), Circle S Reduction 1.69:1 |
(65” L) A-085 (55 – 60hp), Arrow Prop Reduction | |
(65” L) 4A-084 Teledyne 40 HP @ 3600, Circle S Belt Reduction 1.69:1 | |
(66” R) 503 Rotax (50HP), Reduction Type B Gear Box, 2.58:1 | |
(69” L) Briggs or Kohler 65 HP with 2:1 reductions | |
(69” L) Weber 72hp A@ 8000rpm, Custom Reduction: 3.66:1 | |
(69” R) Rotax 582 (65HP), Reduction 2.62:1 | |
(69” R) Rotax 583 (100HP), Reduction 2.62:1 | |
(69” R) Volkswagen, Custom Reduction |
Pricing
Blades | Diameter | Price |
---|---|---|
2 | 63″ – 67″ | $780 |
3 | 63″ – 69″ | $1,140 |
(All Mini Prop diameters available in left-hand rotation only.)
Unit price includes propeller, hub and all hardware for installation.
Call for shipping quote.
NOTE: Pricing Subject to Change at Any Time. Please Call for Current Pricing.
Winner’s Circle
We are a proud sponsor of NAADR (National Association of Airboat Drag Racing)
Whirlwind Propellers gives race teams an unfair advantage.
Race Results April 12, 2014 – Whirlwind Propeller Winners
Class | Place | Owner | Boat Name |
Unlimited Automotive | 1st | Gerald Sherner | Ground Rattler |
Modified Aircraft 4 Cyl | 1st | Roger Walters | Swamp Dragon |
Modified Aircraft 6 Cyl | 1st | Billy Joe White | Devil in the Bottle |
Promod Aircraft 4 Cyl | 1st | Roger Walters | Swamp Dragon |
Promod Aircraft 6-8 Cyl | 1st | Jerry Cypret | Bullet Proof |
Sportsman Class | 2nd | Terry Lee |
:: Boat Driver: Ricky White
Boat Name: Bullet Proof
no images were found
:: Boat Driver: Jerry Cyrpet
:: Jerry Cyrpet races with the blades from Whirlwind Propellers, but he is not sponsored by Whirlwind Propellers.
https://www.facebook.com/
Boat Name: Ground Rattler
:: Boat Owner: Gerald Sherrer
:: Boat Driver: Travis Sherrer
:: Engine: SB 434, 750hp, 300 hp nitrous, 2.88 Stinger reduction
:: Hull: Lou Hawthorn
:: Propeller: 3-blade Whisper Tip EX 78″
:: Race Class: Car Motor Race Boat, Unlimited
Boat Name: Steppin Upp
:: Boat Owner: Pete Peterson
:: Boat Driver: Pete Peterson
:: Engine: SB Chevy, Gear Reduction
:: Hull: Steppin Upp
:: Propeller: 3-blade Whisper Tip EX 76″
:: Race Class: Modified Car Motor, Unlimited
Boat Name: Hulk
:: Boat Owner: Ike Rainey
:: Boat Driver: Josh See
:: Engine: GO-480
:: Hull: Chuck Hawk
:: Propeller: 3-blade Whisper Tip EX 76″
:: Race Class: Pro Mod 6 Cyl, Unlimited
Boat Name: Swamp Dragon
:: Boat Owner: Roger Walters
:: Boat Driver: Roger Walters
:: Engine: 4 Cyl Lycon-nental
:: Hull: Dragon Hull
:: Propeller: 2-blade Whisper Tip 69″
:: Race Class: Modified 4 Cyl, Unlimited Pro Mod 4 Cyl
Boat Name: Marshin
:: Boat Owner: Billy Jo White
:: Boat Driver: Billy Jo White
:: Engine: 6Cyl Lycoming 540
:: Hull: Marsh Master
:: Propeller: 6-blade WhirlWind Razor 70″
:: Race Class: Modified 6Cyl Aircraft, Unlimited Pro Mod 6Cyl Aircraft
Boat Name: Tater Chip
:: Boat Owner: Terry Lee
:: Boat Driver: Terry Lee
:: Engine: 4 Cyl Lycoming 360
:: Propeller: 4-blade WhirlWind Razor 70″
:: Race Class: Modified 4 Cyl
Boat Name: Bad Habit
:: Boat Owner: Lou Hawthorne
:: Boat Driver: Lou Hawthorne
:: Engine: SB V8
:: Hull: Lou Hawthorn
:: Propeller: 3-blade Whisper Tip EX 78″
:: Race Class: Car Motor Race Boat, Unlimited
More Racing Videos
Whirl Wind Goes to Iraq
Airboating in Iraq. It’s easy, Right?
When Faron Floyd from American Airboat Corp. Called and ask if I wanted to go to Iraq and re-assemble some airboats and teach airboat operations, my first thought was; where the hell is any water? As visions of the Rat Patrol sailing accross the sand dunes momentarily wandered through my mind. (I just dated myself) The American Military would do the prcurement for the airboats and the British Military would be my employer. I figured hey, teaching Iraq’s to assemble and operate airboats wouldn’t be much different than what I’ve done here in the States. Right? Well, one would think that’d be the case, unless you throw in something called logistics and a language barrier.. I was really knocked down down a couple of notches on the ol’ “I know what I’m doing” factor when i had to use 2 yes, count em”, two interpreters wore ski masks the entire time we were in class (due to threats made to their lives and the lives of their families if they worked for the british) so i couldn’t even see by their facial expressions if they understood what I was saying before they translated it to the students.. What a fun way to teach…. But I digress……. want MORE??? click here.
