330-Aerobatic

Maximum Performance • Lightest Weight • Best Quality
Quiet and Smooth Operation • Complete Propeller & Spinner Package • Competitive Price

330-Aerobatic

This is the perfect propeller for any primary to unlimited aerobatic performer with an angle valve IO-540.

Performers such as Rob Holland https://www.ultimateairshows.com/ choose Whirlwind Propellers.

The 330 -AC series propeller platform is designed for aggressive aerobatic flight needs, Big Low speed thrust to fly off the top of any maneuver and increase hang time on the vertical up line for that perfect hammer head or humpty.

The wide chord gives unparalleled low speed performance while the highly swept tip lowers high speed drag and lowers the noise signature. This 77″ and 78″ diameter, two and three blade Carbon Fiber composite blades, features electro-formed nickel leading edge shields, and a one piece aluminum hub. Each propeller comes with a composite spinner that is ready to fly, easy to install, and finished with a white primer ready for paint.

The 330 Series is available in a standard or counterweighted configurations.

This propeller uses engine oil and a governor to hydraulically control pitch. Standard configurations are compatible with a standard “pressure to increase pitch” governor with a max relief pressure of 330 psi while counter-weighted configurations are compatible with “pressure to decrease pitch” governor with a max relief pressure of 330 psi.

SPECIFICATIONS:

Propeller330-2B/77AC-77-C
Standard
330-3B/78AC-78-C
Counterweighted / Aerobatic
Engine Type
[Max Compression]:
Lycoming (I)O-360 Angle Valve with Counterweight [9.6:1]
Lycoming (I)O-390/390-EXP [9.6:1]
Lycoming (I)O-540 Parallel Valve [10:1]
Lycoming (I)O-540 Angle Valve [10:1]
Other Limitations:P-Mags must use jumper wireP-Mags must use jumper wire
Max RPM:2,700 RPM2,700 RPM
Number of Blades:23
Diameter:77″ (198.14 cm)78″ (198.14 cm)
System Weight:55 lbs (24.9 kg)
including spinner
62 lbs (28.1 kg)
including spinner
Tear Down Inspection:500 hours or 5 years500 hours or 5 years
Control:Jihostroj P-920-028/A GovernorJihostroj P-940-010/AL Governor
Standard Finish:
Spinner:13″ or 14″14″
Installation & Operation Manual:Manual PDF
Spinner/Cowl Fit Drawing:13″ Spinner PDF
14″ Standard Spinner PDF
14″ Epsilon Spinner PDF
PRICING:
330-3B/78G-78 Unit Price: Call for pricing – Includes propeller, spinner and all hardware for installation
330-3B/78G-78-C Unit Price: Call for pricing – Includes propeller, spinner and all hardware for installation

Additional Costs:

  • Jihostroj P-920-028/A Governor – Call for quote
  • Non-standard blade paint scheme with customer colors – Call for quote
  • Shipping – Call

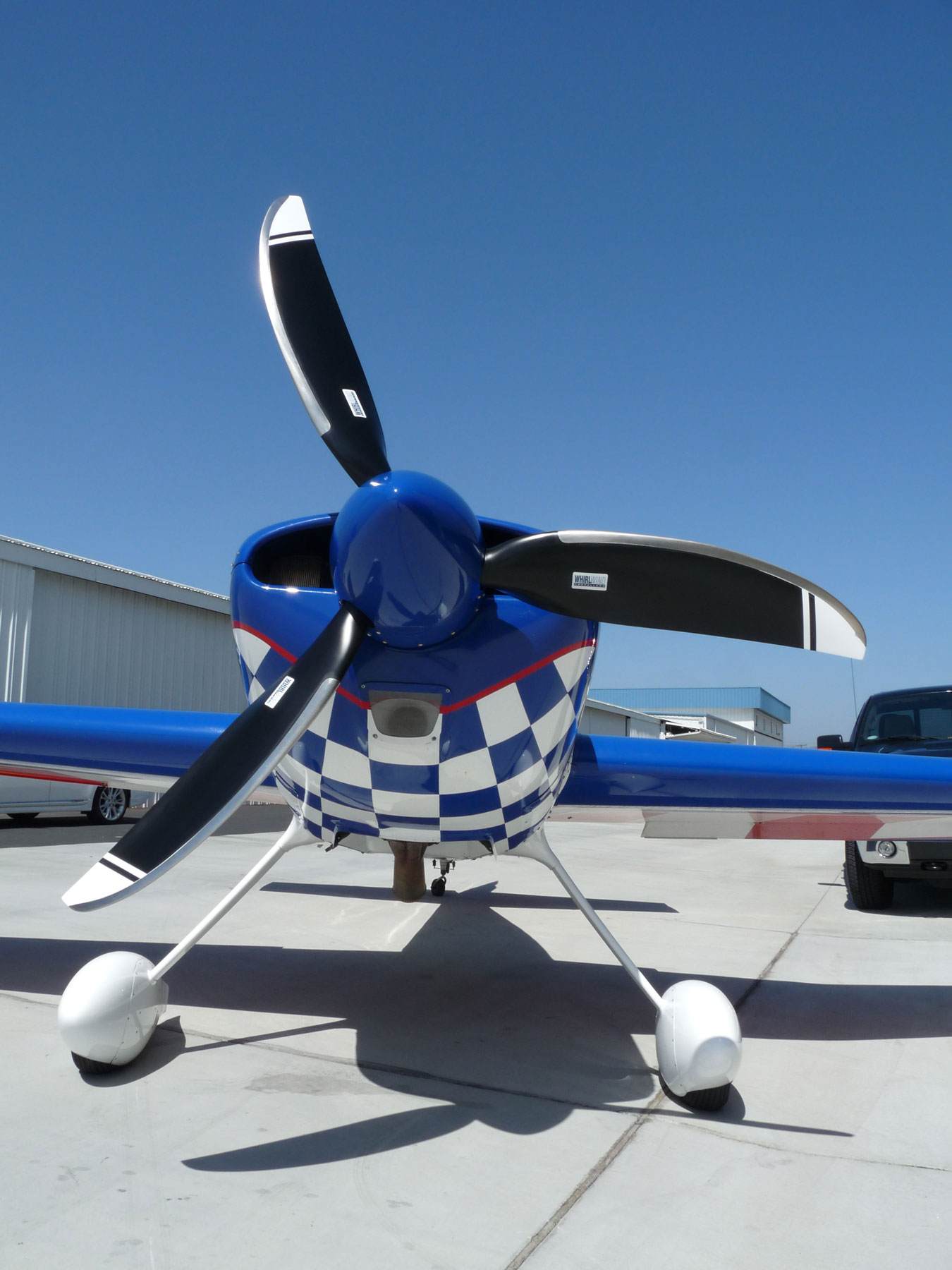

Tim-Just-400A_3

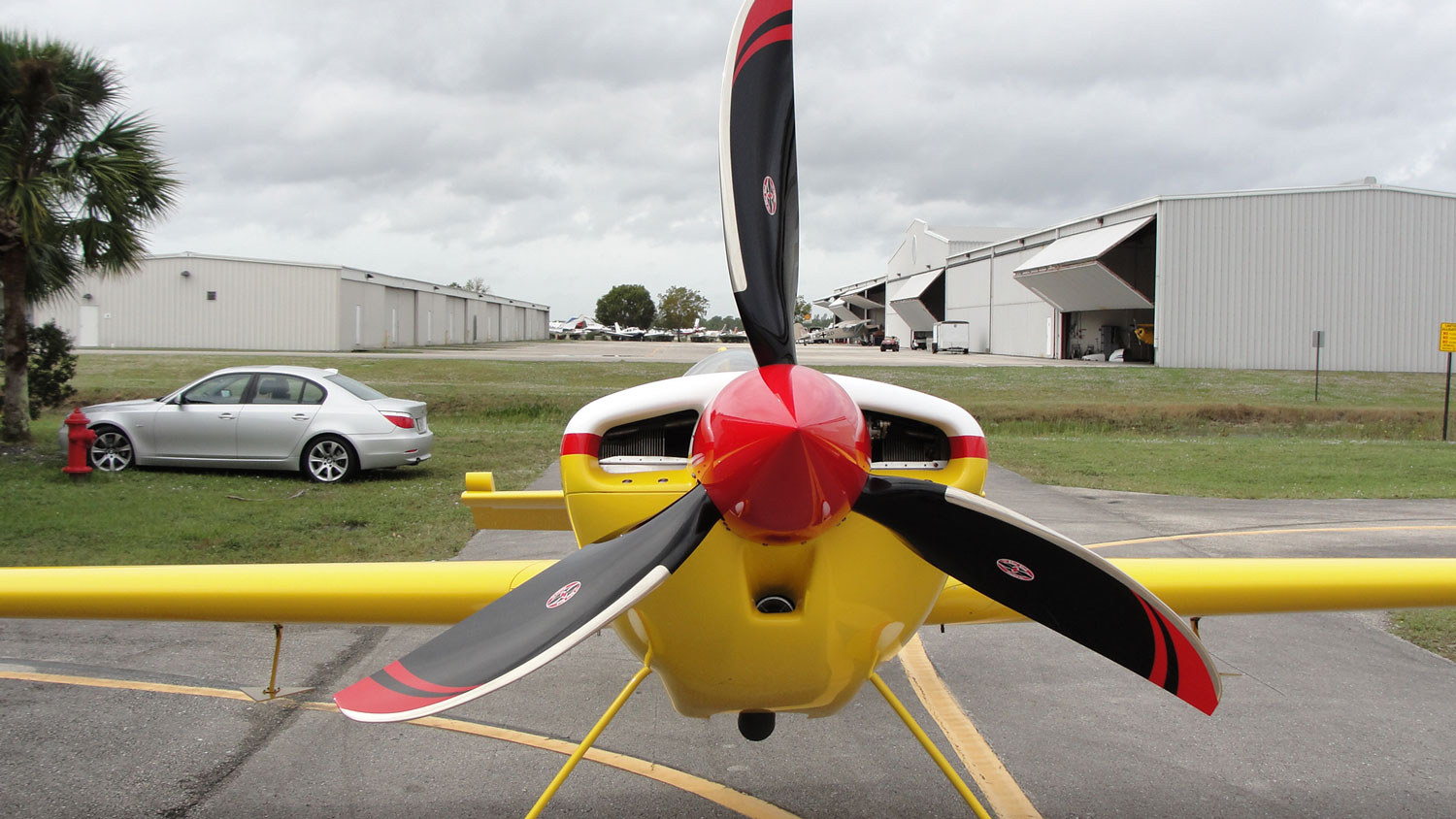

Bill-Hart-400AC_3

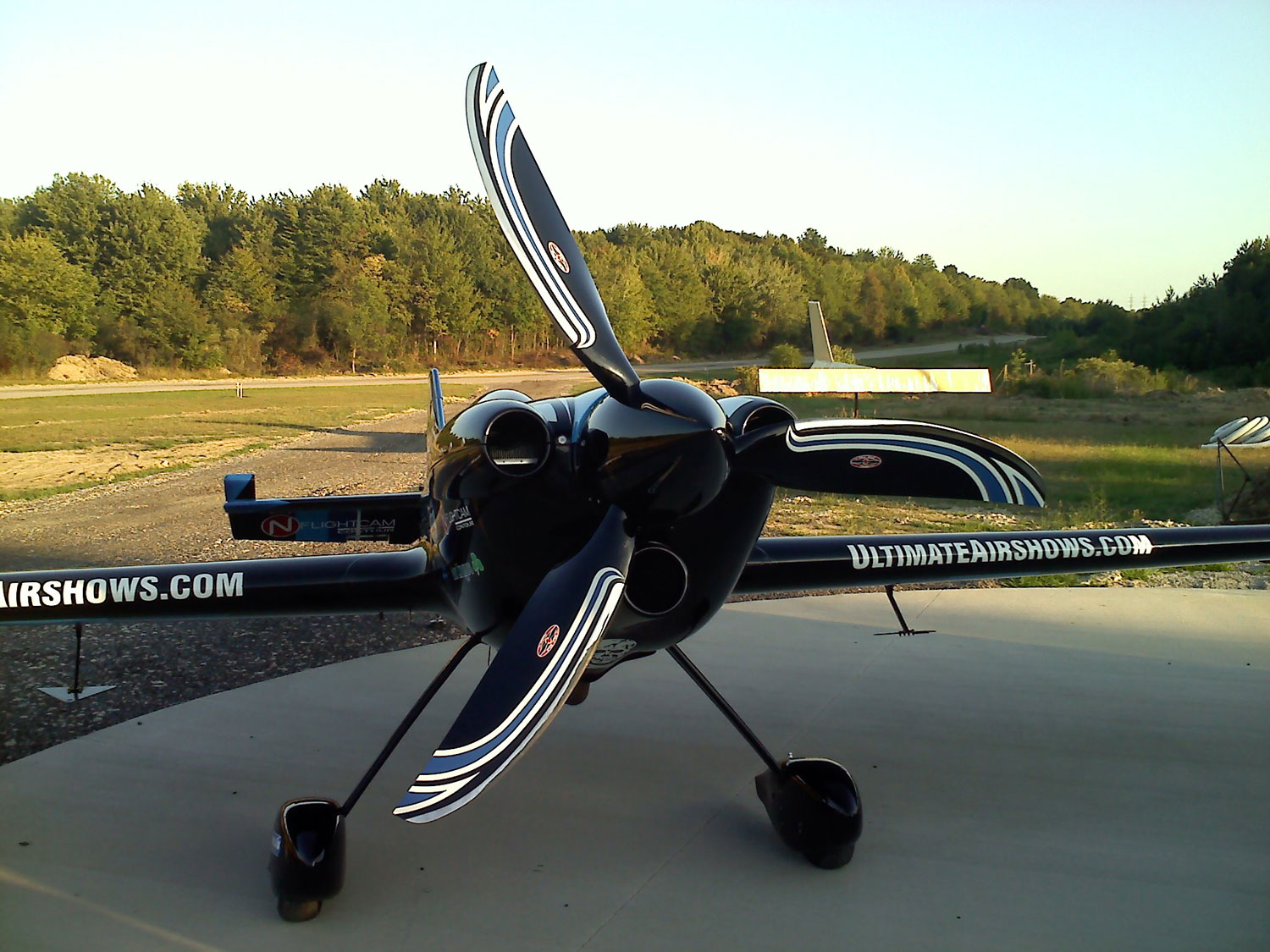

Rob-Holland-400AC

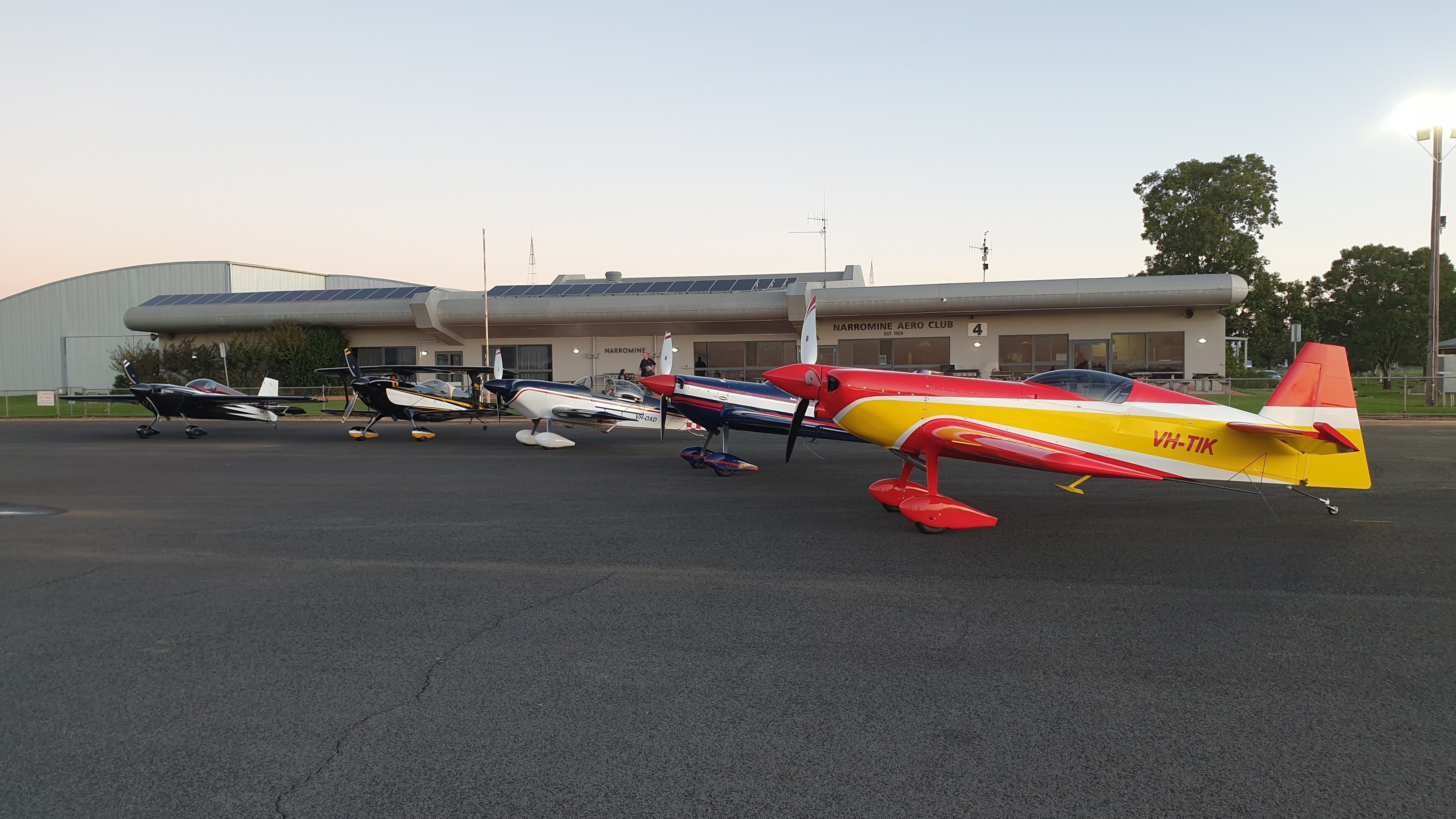

10ac

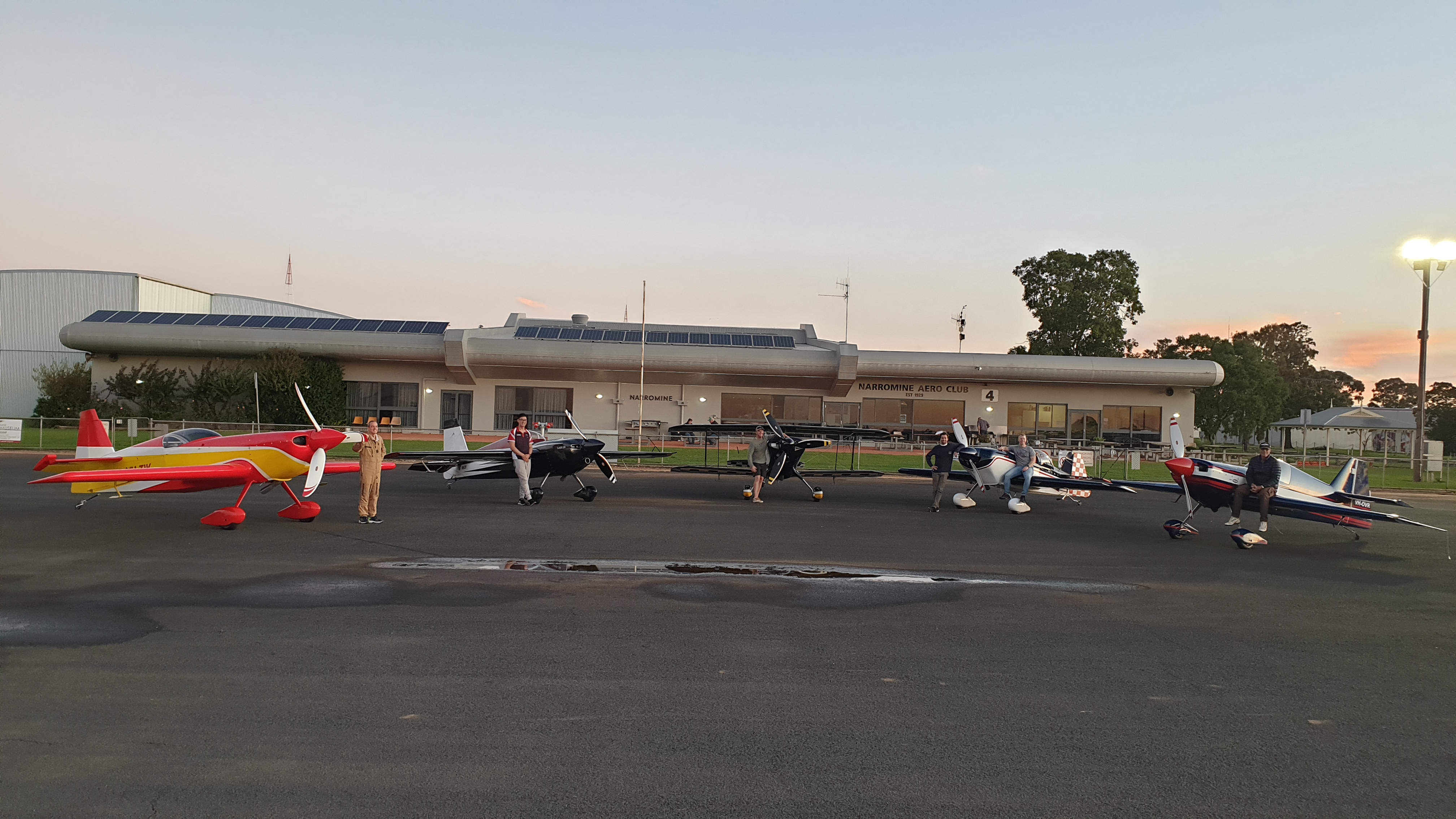

11AC
12AC

View Slideshow


Designed for maximum performance and durability.
