GA-RW3B PROPELLER

ASTM (F2506-1) CERTIFIED



EFFICIENT – QUIET – LIGHT WEIGHT

WhirlWind's Rotax GA Series propellers (ASTM certified) are designed for LSA and S.T.O.L. type aircraft. Optimized planform shape and proprietary airfoils make this propeller efficient and very quiet in operation. The carbon fiber construction with X-Coreā„¢ ensures a safe, strong propeller with low inertia as Rotax requires. The Nickel leading edge provides superior abrasion protection and the blade's high gloss natural carbon fiber finish will satisfy the most discriminating owner.

WhirlWind's GA blades are constructed from aerospace thermo-set composite materials, and are equipped with a full length electro-formed nickel leading edge for unparalleled durability and precise fit. These blades are light and durable, and are suitable for flying in rain and from unimproved airstrips. WhirlWind's GA hubs are machined from aerospace grade billet aluminum.

GA-RW3B-70" (LSA)

Engine
Rotax 912/914
Number of Blades
3
Diameter
68-70in
Weight
12 lbs
RPM Max
5800 Engine
HP
80 – 115
Flange Pattern Diameter
6 bolts for 4 inches diameter pattern
Bolt Size
5/16 inches – nonthreaded
8 mm – threaded
Blade Color
High Gloss Natural Carbon Fiber
Moment of Inertia
4200 kg/cm2
Price
$1650
Rotax_photo_noBackground_lowRes

GA-RW3B-STOL

Engine
Rotax 912/914
Number of Blades
3
Diameter
73-75in
Weight
12 lbs
RPM Max
5800 Engine
HP
80 – 115
Flange Pattern Diameter
6 bolts for 4 inches diameter pattern
Bolt Size
5/16 inches – nonthreaded
8 mm – threaded
Blade Color
High Gloss Natural Carbon Fiber
Moment of Inertia
4350 kg/cm2
Price
$1825
Rotax_photo_noBackground_lowRes

Spinners

Installation

Testimonials

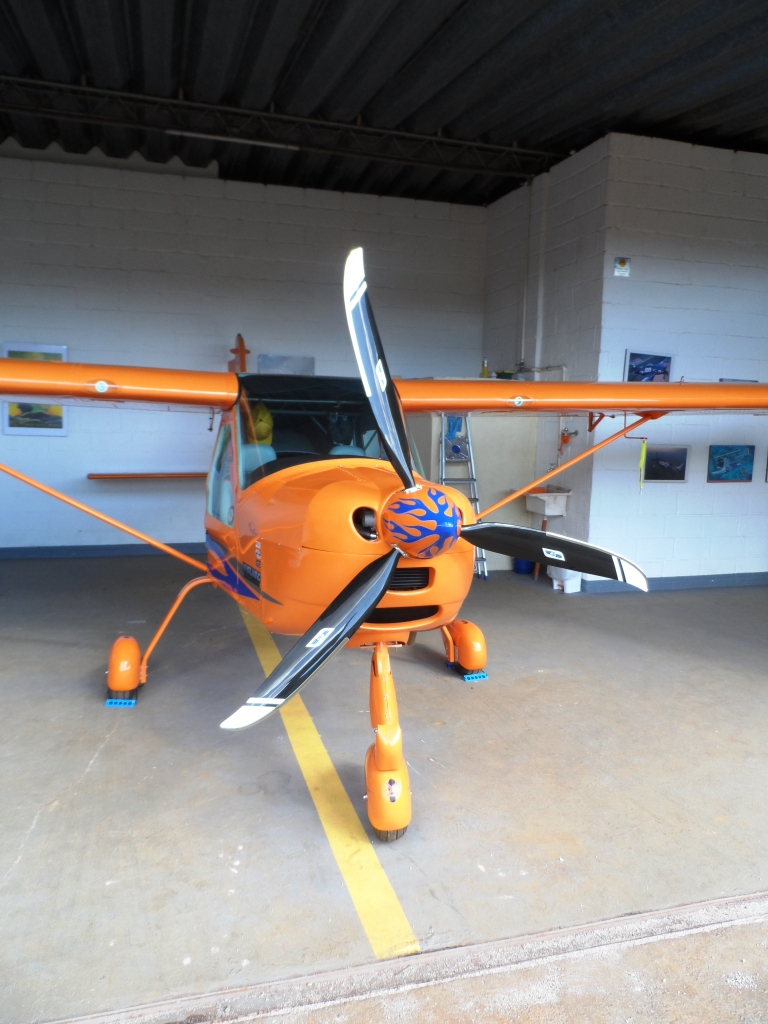

Just installed the blades, they worked very well and gave a fantastic look to the plane.All the best,

Alexandre

Invalid Displayed Gallery

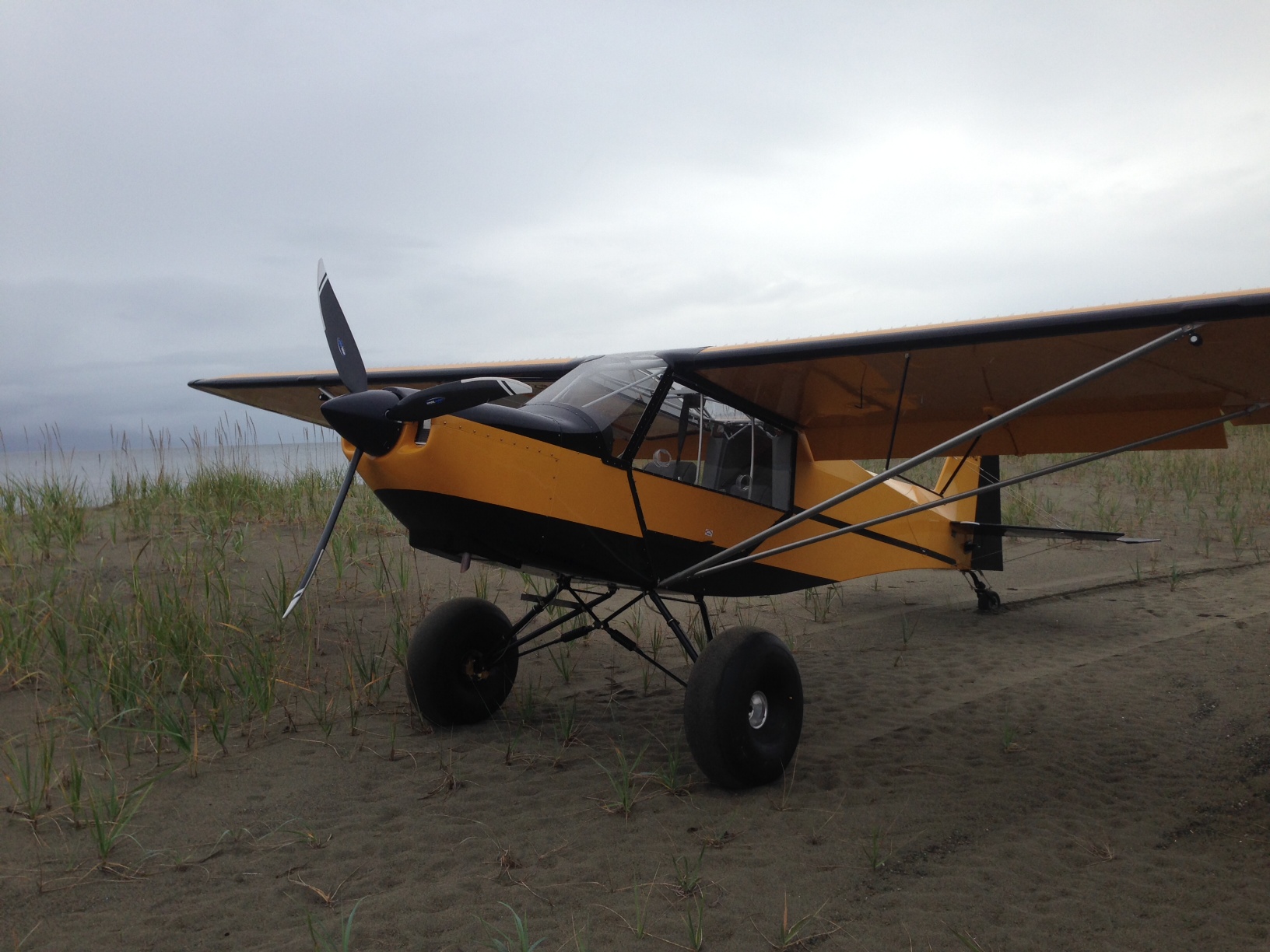

This long prop turned 100 ponies into 100 horses. Not to mention smooth as
silk. Tail comes up instantly. Take off shortened substantially. I can’t
tell you how much we value good service up here.

Ken

Airplane : Rans S-7

Engine : Rotax

Invalid Displayed Gallery

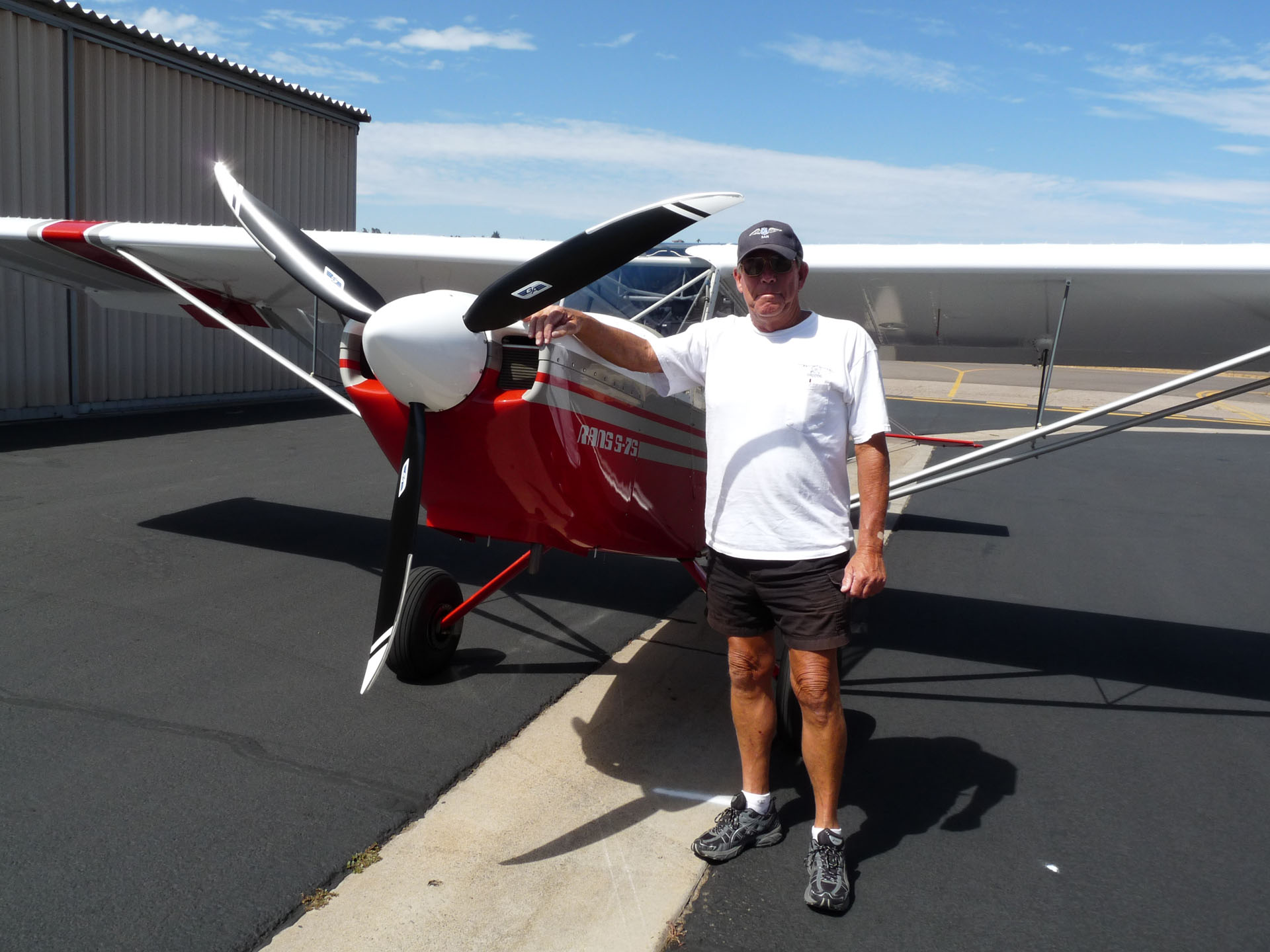

I installed Rotax 75 on my Rans S-7 aircraft. It takes off in a shorter range and climbs steeper than any other propellers I have tried. It is smooth and shiny too. Thanks Whirlwind.

Ron A.

Airplane : Rans S-7

Engine : Rotax
