Propellers for UL260/350 Engines

The WhirlWind GA propeller series are ground pitch adjustable aircraft propellers featuring advanced aerodynamic and composite design. The high gloss urethane surface shows off the quality craftsmanship and attention to detail.

The blade design is optimized for maximum efficiency and minimum noise. The blade structure is manufactured from theromoset epoxy/graphite composite matrix. This advanced composite structure ensures high strength and blade accuracy in all flight environments. Only WhirlWind propellers come standard with electroformed Nickel leading edge shields for superior fit and abrasion protection. The hub is CNC machined from aerospace aluminum and is dimensionally certified.

GA-UL260-2B

Engine
UL260
Number of Blades
2
Diameter
64-66in
Weight
8 lbs
RPM Max
3000 – continuous
3300 – 5 min
HP
107
Flange Pattern Diameter
6 bolts for 4 inches diameter pattern
Bolt Size
5/16 inches
Price
$1850

UL260_01 _noBackground_addedShadow

GA-UL350-2B

Engine
UL350
Number of Blades
2
Diameter
70in
Weight
12.75 lbs
RPM Max
3000 – continuous
3300 – 5 min
HP
130
Flange Pattern Diameter
6 bolts for 4 inches diameter pattern
Bolt Size
5/16 inches
Price
TBD
 2BUL350-70_02_modified_lowRes_noBackground

GA-UL350-3B

Engine
UL350
Number of Blades
3
Diameter
66in
Weight
13 lbs
RPM Max
3000 – continuous
3300 – 5 min
HP
130
Flange Pattern Diameter
6 bolts for 4 inches diameter pattern
Bolt Size
5/16 inches
Price
$2450
UL350_3Blade_01_lowRes_noBackground

Spinners

Installation

Testimonials

Hi WhirlWind,

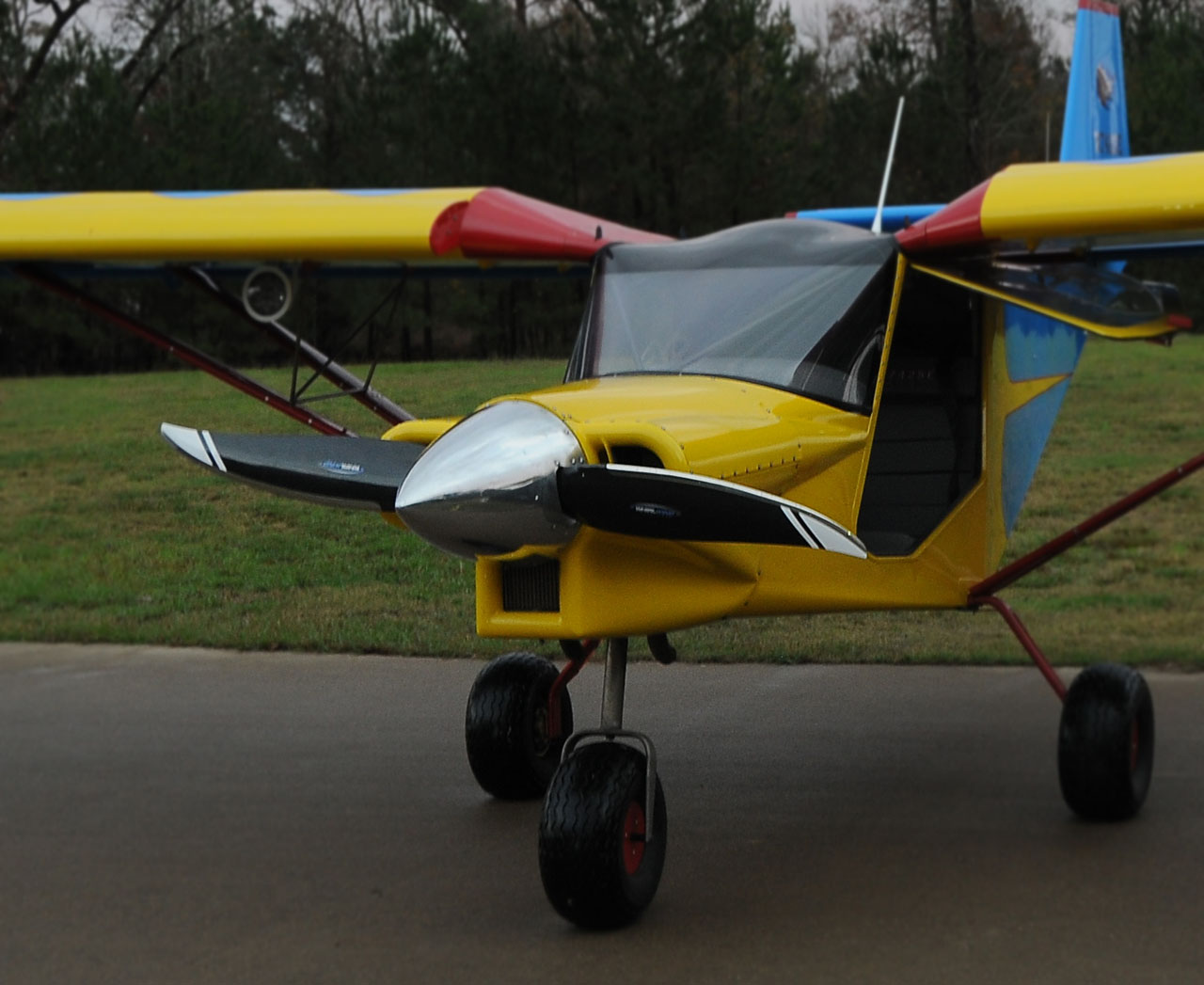

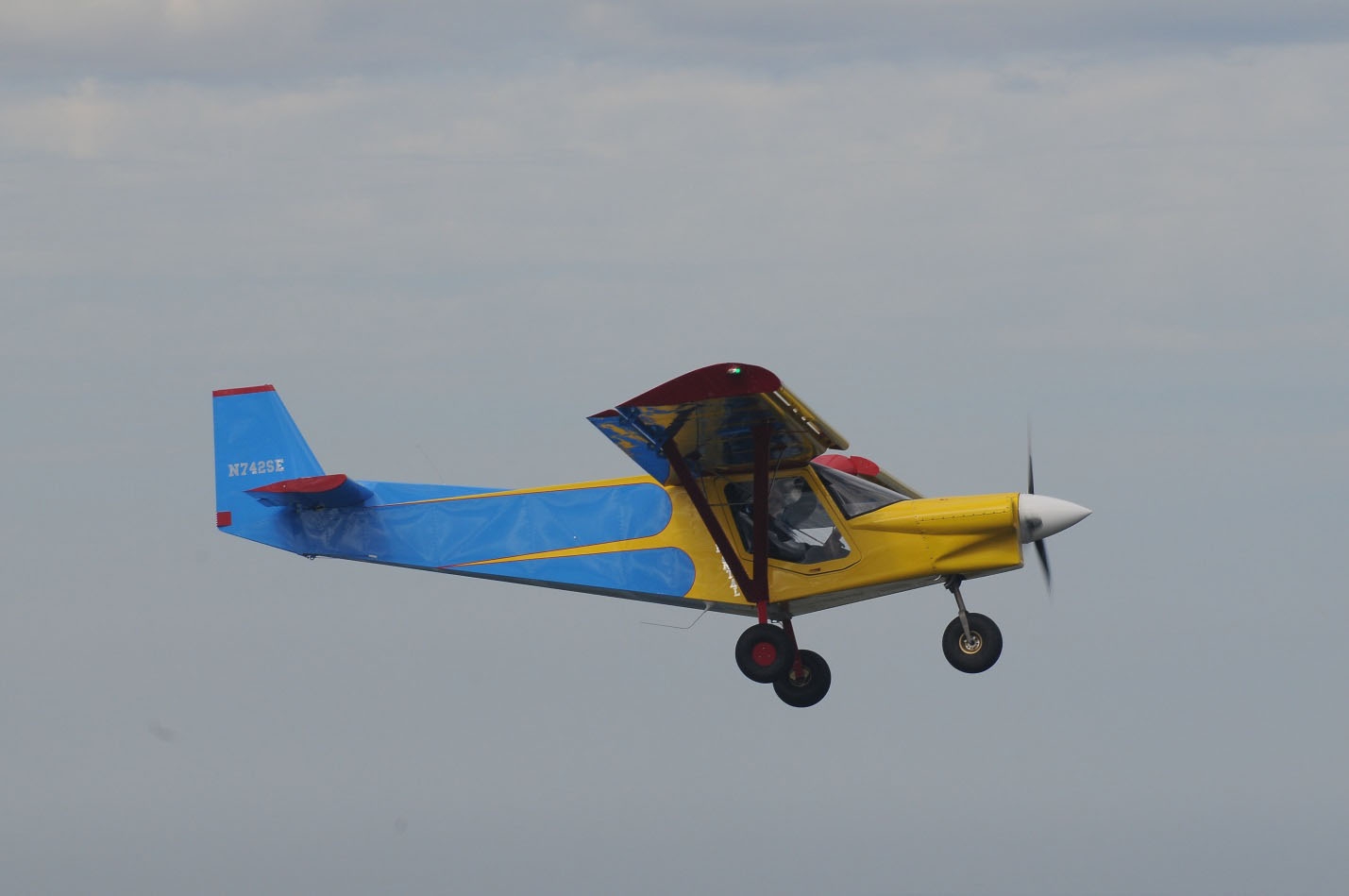

Just installed your new 70in S.T.O.L. propeller on UL350 powered Zenith 701. I can say with confidence this is the best performing propeller we have tried, and we have tried them all! Take off and climb are impressive and everyone is crazy over the carbon fiber finish.

Thanks for a fantastic propeller !!

Scott Ehni

Airplane : Zenith 701

Engine : UL350

Invalid Displayed Gallery


We flew for 4 hours with the new Whirl Wind 3 blade propeller for the UL 350IS and I must say I am impressed. 3300 RPM for takeoff and the propeller would out climb the “Brand X Propeller”, however the cruise RPM was too high. So that we added 2 degrees of pitch and could take with 3000 RPM, the rate of climb was still 1400 feet per minute. Now I cruise with 100 less RPM than the “Brand X” at 96 MPH and 2560RPM. This is the best preforming propeller we have tested. And we’ve tested all the big name brands.

Here are Pictures of our new UL 350 3 blade Whirlwind propeller during the partial solar eclipse. Fitting because this prop has eclipsed all the others we have tested so far.

Mark N., Lebanon, OH USA

Airplane : Zenith 701

Engine : UL350IS

Neubauer-GlaStar-N875ED“Attached is a photo of my airplane with your GA200L prop installed; purchased in Feb 2011. Engine is a Superior XP-360, yielding top cruise speed of around 160 mph. I love this prop! Compared to Sensenich aluminum fixed pitch it results in 20 lbs less weight and 5 mph faster!”
