GA200L-STOL PROPELLER (76″ to 82″ diameter)

for LYCOMING O-320/ O-360 ENGINES

The GA200L-STOL’s highly tapered, swept blade planform and proprietary airfoil is designed for optimized blade loading distribution resulting in maximum efficiency and minimum noise. The idealized blade shape is only made possible with modern advanced carbon composite structures developed in-house by WhirlWind Propellers. All WhirlWind propellers come standard with electroformed Nickel leading edge shields for superior fit and abrasion protection and Polyurethane top coat. The hub is CNC machined from aerospace aluminum and is dimensionally certified. The GA200L-STOL blade design is optimized for maximum efficiency and minimum noise. The blade structure is manufactured from thermoset epoxy/graphite composite matrix. This advanced composite structure ensures high strength and blade accuracy in all flight environments. Only WhirlWind propellers come standard with electroformed Nickel leading edge shields for superior fit and abrasion protection. The hub is CNC machined from aerospace aluminum and is dimensionally certified. The WhirlWind GA propeller series are ground pitch adjustable aircraft propellers featuring advanced aerodynamic and composite design. The satin black surface finish shows off the quality craftsmanship and attention to detail.

GA200L-82 Propeller on Titan-340 Engine

More of Kevin Quinn and the Flying Cowboys

GA200L-82 Propeller on ECI-375 Engine



Whirlwind GA200L Propeller and Spinner Installation Video by Wasabi Air Racing


Category: Uncategorized
  • GA-200L-STOL
  • Spinners
  • Installation
  • Testimonials

GA-200L-STOL

Engines
Lycoming O-320 , O-340 , O-360
Number of Blades
2
Diameter
76 , 78 , 80 , 82 in
Weight
18 lbs
RPM Max
2700
HP
150 – 180
(Not Available for Angle-Valve (I)O-360.)
(Max Compression Ratio: 9.6:1)
Flange Bolt Sizes
3/8″ , 7/16″ or 1/2″
Price
GA200L-STOL – $CALL – Includes all mounting hardwares
Spinner – $CALL – Semi-gloss Carbon Fiber Finish
 Cub_06

Spinners

Click Here for Lycoming Spinners

Installation

GA200L-Installation-Guide

Testimonials

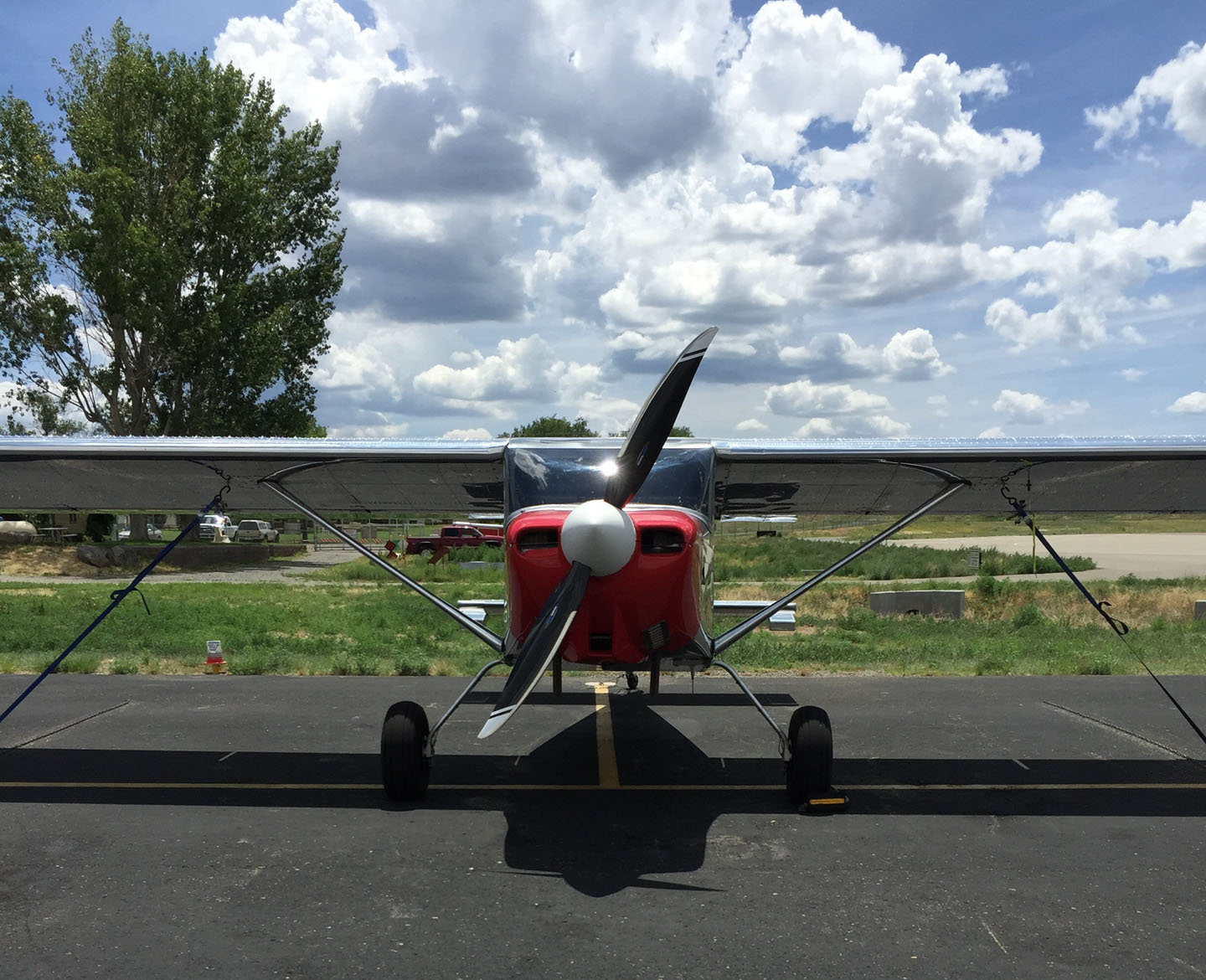

Hi Whirlwind First off, thanks for your help getting me set up with what I needed for my Rebel. The prop works fantastic! Flew it out to Prescott, AZ yesterday, and the plane has never performed so well. I’ve gained 15 knots in cruise between the prop efficiency, the ability to set the pitch, and the rebuilt engine. That’s pretty amazing for a draggy bushplane! Prescott.

Prescott_modified

View Slideshow

Amazing performance, rate of climb out of this world at 1200 feet per min. at 6000 ft. Thanks! Should you wish to send a t shirt please do so in large. I’ll be happy to tell anyone how wonderful your props are. Cheers, Neal

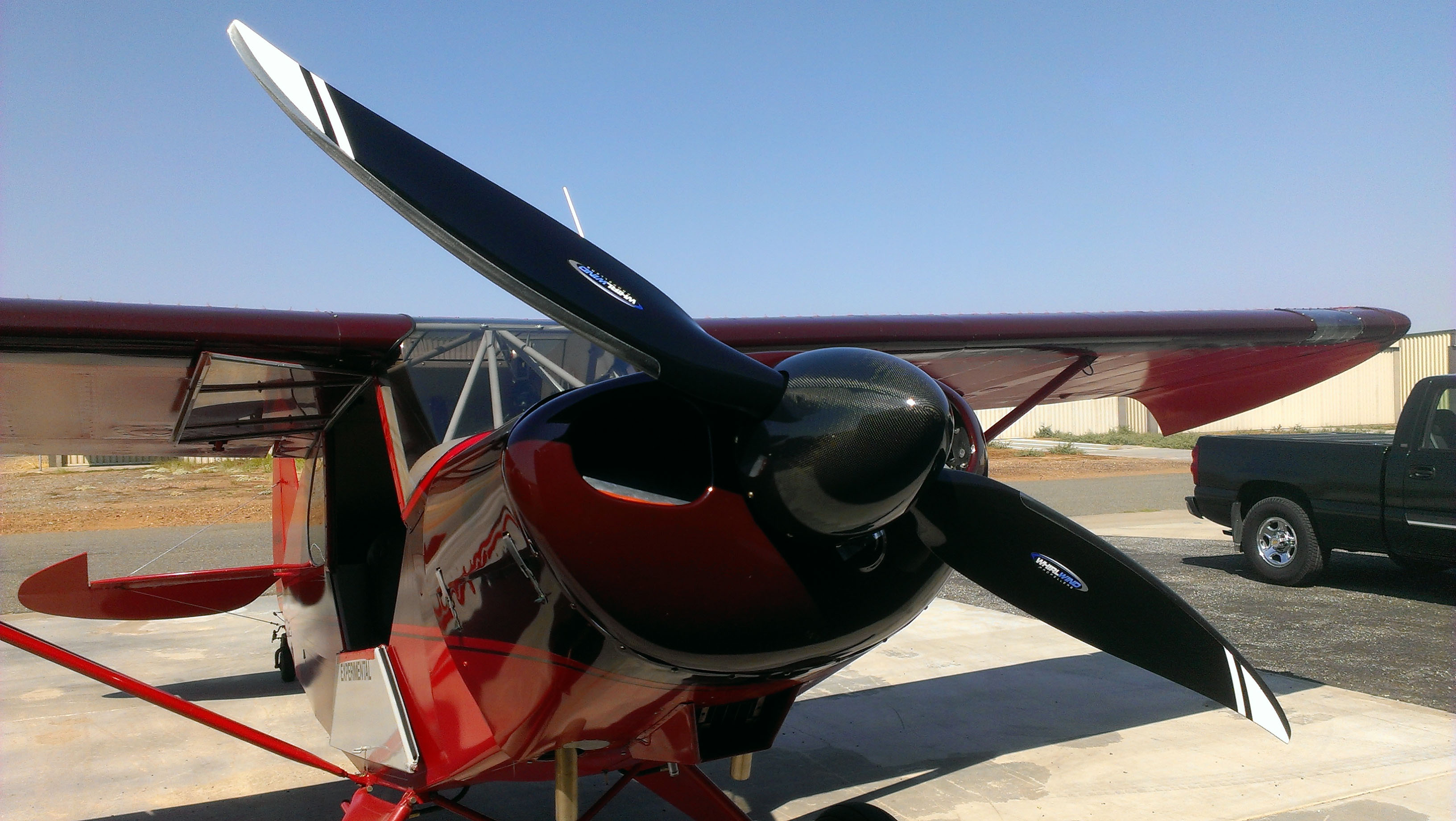

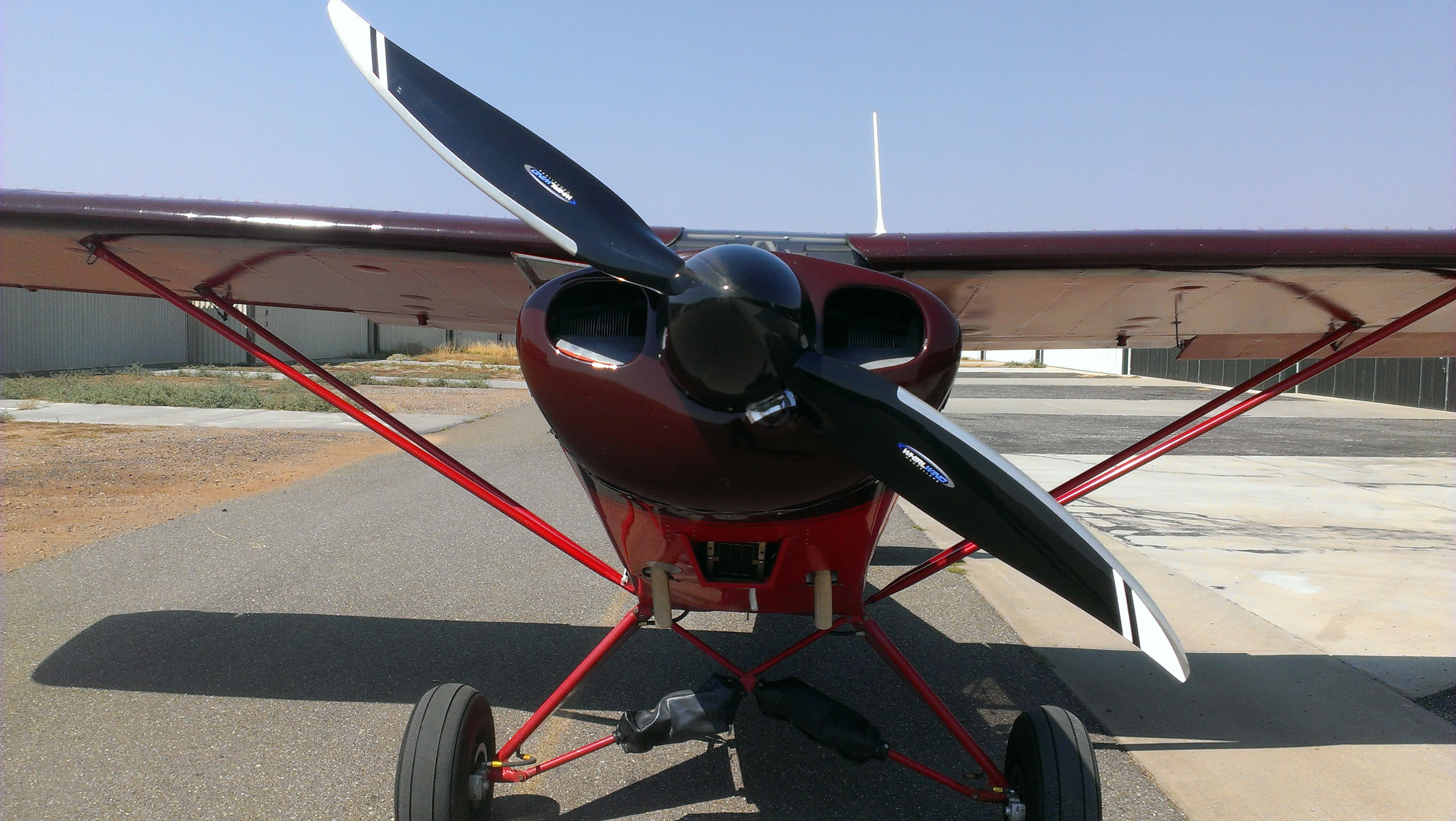

Thanks Whirlwind for the great prop and service. Your propeller really brought my super cub alive and performs much better than the one I removed. Everyone who sees the propeller comments on the outstanding quality. Still can’t believe you were able to send a new set of blades overnight when I encountered an un-welcome hangar rash incident. Pete T. Airplane : Super Cub Engine : O320

Cub_01
Cub_02

View Slideshow
